Кабели и аксесоари — Terminal block, Static
Model
- Product Model

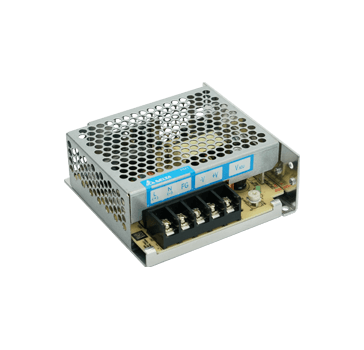

- LRS-50-12
- Type
- Power Supply_12V50W
Physical specification
- End A connector
- Terminal block (220 VAC Input)
- End B connector
- Terminal block
- Applicable scenario
- Static
Electrical specification
- Input voltage range
- 90 VAC ~ 264 VAC
- Input AC current
- 1.1 A @ 115 VAC 0.7 A @ 230 VAC
- Output power
- 50 W max
- Output voltage
- 12 V
- Output current
- 0 A ~ 4.17 A
- Over current protection
- > 120% of rated current, hiccup mode, non-latching (auto-recovery)
- Over voltage protection
- Overvoltage protection range: 13.8 V to 16.2 V Protected mode: Turn off the output voltage, restart and restore.
- MTBF
- 700,000 h (Standard: Telcordia SR-332)
Additional information
- Working temperature
- –10 °C to 70 °C (14 °F to 158 °F) (For temperatures above 50 °C, the output load decreases by 2.5% for every degree increase in temperature.)
- Certification
- CE,UL,CCC,NRCan,EAC
- Packaging
- Individual package
Смарт камери
MV-SC1003M-03S-WBN-NR

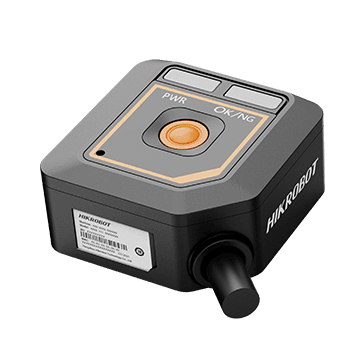

SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 120mm
MV-SC1008M-05S-WBN-NR
SC1000 series Vision Sensor，0.8MP，Mono，5mm focal length，focus 120mm
MV-SC2004EC-15S-WBN

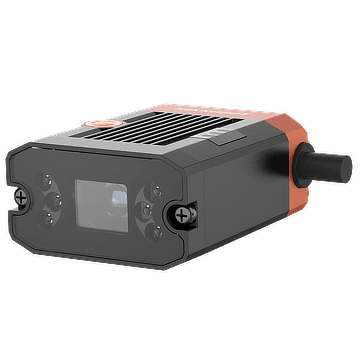

SC2000E series vision sensor，0.4MP，Color，15mm focal length

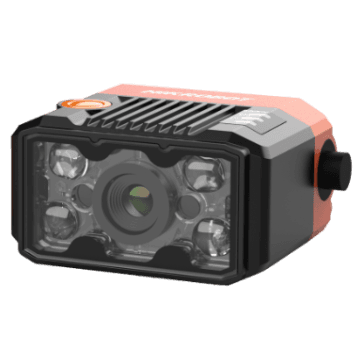

MV-SC2016EM-06S-WBN-MINI
