Кабели и аксесоари — Terminal block, Static
Model
- Product Model
- LRS-75-48
- Type
- Power Supply_48V75W
Physical specification
- End A connector
- Terminal block (220 VAC/DC Input)
- End B connector
- Terminal block
- Applicable scenario
- Static
Electrical specification
- Input voltage range
- 85 VAC ~ 264 VAC 120 VDC ~ 373 VDC
- Input AC current
- 1.4 A @ 115 VAC 0.85 A @ 230 VAC
- Output power
- 76.8 W max
- Output voltage
- 48 V
- Output current
- 0 A ~ 1.6 A
- Over current protection
- > 120% of rated current, hiccup mode
- Over voltage protection
- Overvoltage protection range: 55.2 V to 64.8 V Protected mode: Turn off the output voltage, restart and restore.
- MTBF
- 3,334,300 h (Standard: Telcordia SR-332)
Additional information
- Working temperature
- –30 °C to 70 °C (–22 °F to 158 °F) (For temperatures above 50 °C, the output load decreases by 2% for every degree increase in temperature.)
- Certification
- CE,UL,CCC,EMC,EAC,TUV,UK
- Packaging
- Individual package
Смарт камери

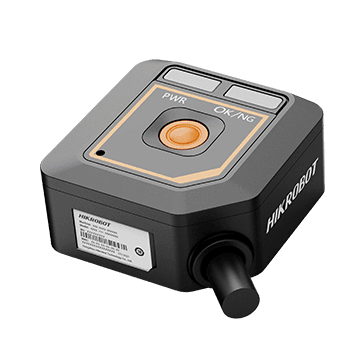

MV-SC1003M-03S-WBN-NR
SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 120mm
MV-SC1008M-05S-WBN-NR
SC1000 series Vision Sensor，0.8MP，Mono，5mm focal length，focus 120mm

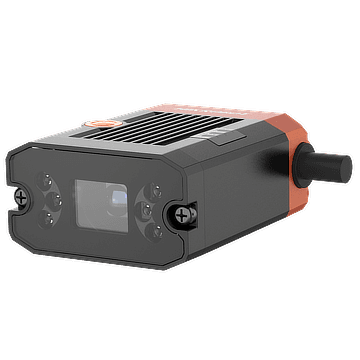

MV-SC2004EC-15S-WBN
SC2000E series vision sensor，0.4MP，Color，15mm focal length

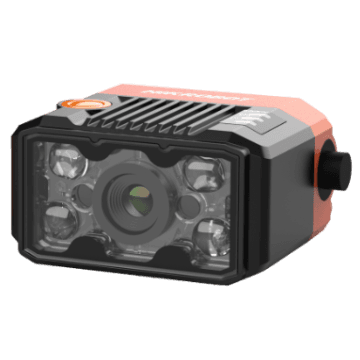

MV-SC2016EM-06S-WBN-MINI
