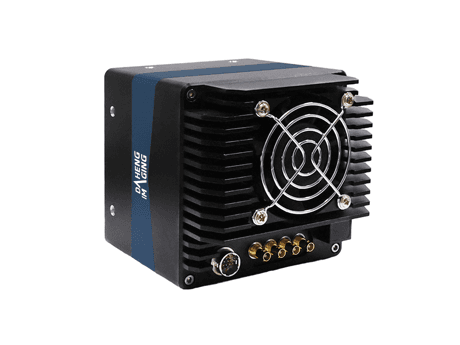

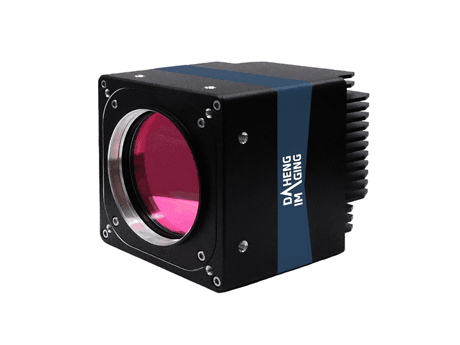

MARS-10300-24X2C-TF

Specifications

Model

MARS-10300-24X2C-TF

Product Families

MARS

Resolution

11264×9200

Frame Rate (fps)

24

Sensor Manufacturer

Gpixel

Sensor

36.1mm × 29.4mm GMAX32103 Global shutter CMOS

Pixel Size

3.2μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

36.04 × 29.44 mm

Диагонал на сензора

46.54 mm

Pixel Bit Depth

8 bit，12 bit

Data Interface

CoaXPress

Lens Mount

M72

Spectrum

Color

Pixel Formats

Bayer GB8, Bayer GB12

Signal Noise Ratio

40.3 dB

Exposure Time

20μs ~ 1s

Gain

Digital Gain: 0dB~16dB, Analog Gain: 0.5dB~2.8dB

Binning

1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Decimation

Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232

Power Requirement

24 VDC or PoCXP

Power Consumption

Typical: 22W@24V, ambient temp. 25°C, Sensor temp. 10°C, TEC (ON), FAN (ON). 30W@Rapid cooling stage, TEC (ON), FAN (ON)

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

100mm × 100mm × 112.3mm

Weight

1610 g

Conformity

CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
