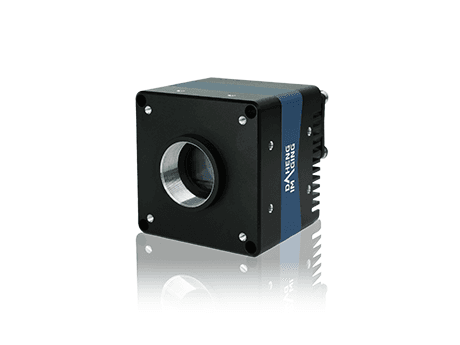

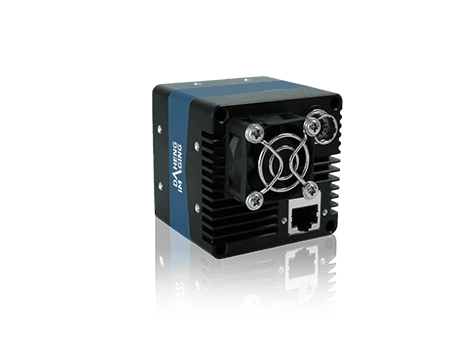

MARS-1261-90GTM-NF

Specifications

Model

MARS-1261-90GTM-NF

Product Families

MARS

Resolution

4096×3072

Frame Rate (fps)

89.9

Sensor Manufacturer

On Semi

Sensor

1" XGS12000 Global shutter CMOS

Pixel Size

3.2μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

13.11 × 9.83 mm

Диагонал на сензора

16.38 mm

Pixel Bit Depth

8 bit，12 bit

Data Interface

10GigE

Lens Mount

C

Spectrum

Mono

Pixel Formats

Mono8, Mono12

Signal Noise Ratio

39.93 dB

Exposure Time

Ultra short: 15μs~36μs; Standard: 37μs~1s

Gain

0dB ~ 24dB

Binning

1×1, 2×1 (No Vertical Binning)

Decimation

Horizontal, Vertical Sensor: 1×1, 1×2, 2×1, 2×2

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 bidirectional programmable GPIO

Power Requirement

12~24 VDC

Power Consumption

< 13.73 W @ 12 VDC

Operating Temp.

0°C ~ +50°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

60 mm × 60 mm × 54.4 mm

Weight

361 g

Conformity

CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
