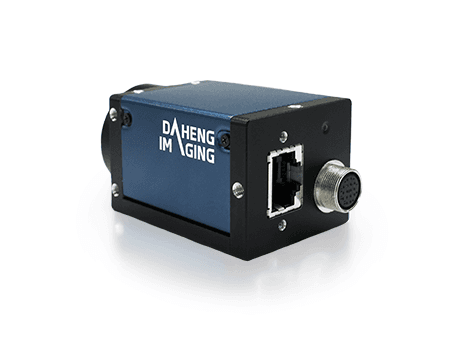

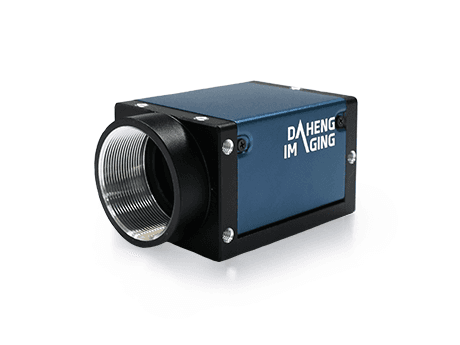

ME2P-034-491G3M-P-MS4-16P S00

Specifications

Model

ME2P-034-491G3M-P-MS4-16P S00

Product Families

MERCURY2 Plus

Resolution

1280×256

Frame Rate (fps)

491

Sensor Manufacturer

Sony

Sensor

1/2" IMX990 Global shutter CMOS

Pixel Size

5μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

6.4 × 1.28 mm

Диагонал на сензора

6.53 mm

Pixel Bit Depth

8 bit，10 bit，12 bit

Data Interface

2.5GigE

Lens Mount

C

Spectrum

Mono

Pixel Formats

Mono8，Mono10，Mono12

Signal Noise Ratio

50.76 dB

Exposure Time

UltraShort: 3μs~100μs, Standard: 13μs ~ 1s

Gain

0dB ~ 24dB

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 2 programmable GPIOs

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

3.64 W @ 12 VDC；4.36 W @ PoE

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

36 mm × 31 mm × 50.6 mm (w/o connectors)

Weight

87 g

Conformity

CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
