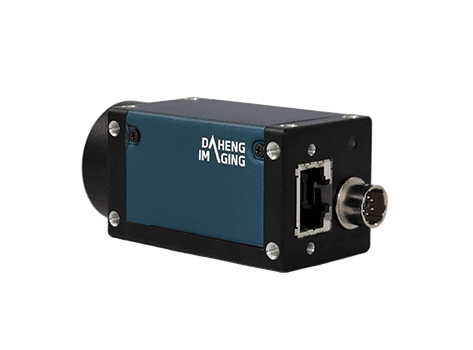

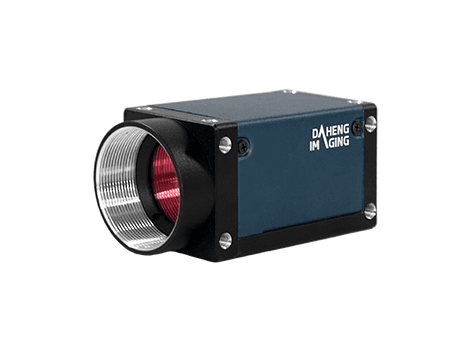

MER3-1221-24G3C-P

Specifications

Model

MER3-1221-24G3C-P

Product Families

MERCURY3

Resolution

4096×3000

Frame Rate (fps)

22.8

Sensor Manufacturer

Sony

Sensor

1/1.1" IMX545 Global shutter CMOS

Pixel Size

2.74μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

11.22 × 8.22 mm

Диагонал на сензора

13.91 mm

Pixel Bit Depth

8 bit, 12 bit

Data Interface

2.5GigE

Lens Mount

C

Spectrum

Color

Pixel Formats

Bayer RG8, Bayer RG12, RGB8, BGR8, Mono8

Signal Noise Ratio

39.83 dB

Exposure Time

UltraShort: 1μs~2.4μs; Standard: 3μs~1s

Gain

0dB ~ 16dB

Decimation

Sensor: 1×1, 2×2

Reverse X/Y

Reverse X/Y

I/O Interface

1 input with opto-isolated, 2 programmable GPIOs

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

< 5.25 W @ 12V / PoE

Operating Temp.

0°C ~ +50°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 29 mm × 50.6 mm (w/o connectors)

Weight

69 g

Conformity

CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
