Вижън контролери
Model
- Product Model

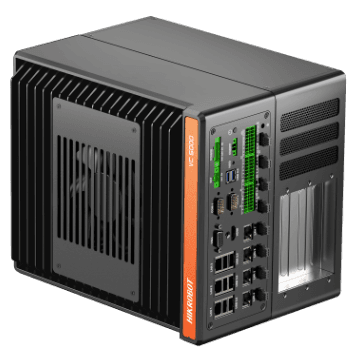

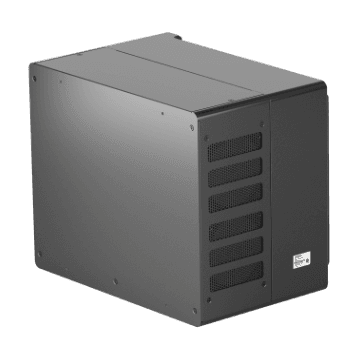

- MV-AIBOX26
- Type
- Series AI Vision Controller
Performance
- CPU
- Intel® Core™ i7-12700 (12 cores- 20 threads, 3.6Ghz)
- Memory
- 32 GB
- Storage
- 256 GB SSD and 2T HDD
- GPU
- Intel® UHD Graphics 770 , Render GPU supported
- Operating system
- Windows 11
- Chip
- Q670 Industrial
Interface
- Video output
- HDMI interface × 1, VGA interface × 1<br/>Supports independent display output at the same<br/>time Max. resolution 1920 × 1080 @ 60 Hz<br/>Max. resolution 1920 × 1080 @ 60 Hz
- Digital I/O
- Opto-isolated input × 8<br/>Opto-isolated output × 12 ( supports NPN/PNP switching), digital-isolated low-side driver<br/>output × 8 Non-isolated bi-directional differential I/O × 4
- Network interface
- GigE interface × 7, including interface for PoE × 4
- USB Interface
- USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1
- Serial Port
- RS-232 × 2 by default, supports switching to RS-485 and RS-422
- Light interface
- 24 VDC constant voltage × 8<br/>(Max. power consumption of single channel is 72 W,total max. power consumption 190 W)
- Extended interface
- SATA 3.0 interface × 2, M.2 NVME interface × 1<br/>PCIe × 16 extended interface × 1, PCIe × 8 extended interface × 1, PCIe × 4 extended interface × 2 (When the PCIe × 8 extended interface is used, the PCIe × 16 will only provide half of the bandwidth.), Lighting controller expansion module
Electrical feature
- Power supply
- 24 VDC (4-pin interface for system power supply)<br/>24 VDC (2-pin interface for graphics card power supply)
- Power consumption
- Typ. 384 W(4-pin interface for system power supply)<br/>Typ. 228 W (2-pin interface for graphics card power supply)
Mechanical
- Dimension
- 302.3 mm × 248 mm × 210 mm (11.9" × 9.8" × 8.3")
- Weight
- Approx. 7.5 kg (16.5 lb.)
- Temperature
- Graphics card used: 0 °C to 45 °C (32 °F to 113 °F)<br/>Graphics card not used: 0 °C to 50 °C (32 °F to 122 °F)<br/>Graphics card not used: 0 °C to 50 °C (32 °F to 122 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Certification
- CE, KC
Подобни продукти
MV-VC5324-256G70-2T
VC5000 Vision Controller，12th-I3，16GB+256G SSD+2T HDD，Supported PCIE

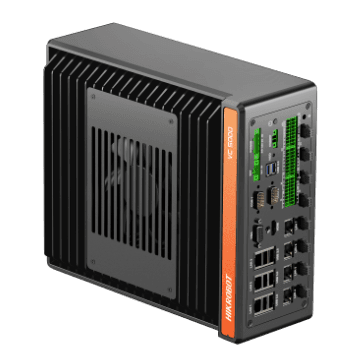

MV-VC5314-256G70-2T
