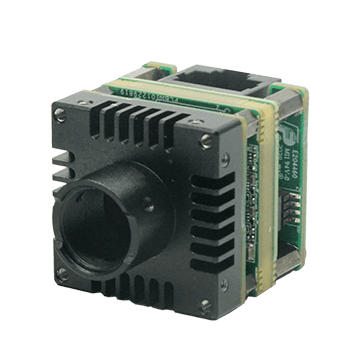

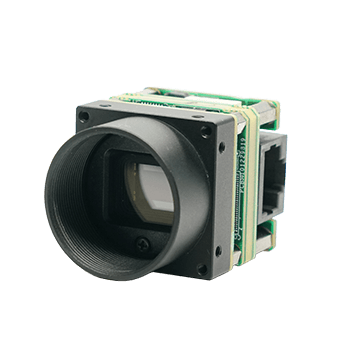

12MP Board Level Camera, GigE, IMX226, mono, C-mount
12–25 MP GigE Area Scan камери — IMX226, Rolling shutter, CMOS, M12-mount
Model
- Product Model
- MV-CB120-10GM-C
- Type
- 12MP Board Level Camera, GigE, IMX226, mono, C-mount
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Sony® IMX226
- Pixel size
- 1.85 μm × 1.85 μm
- Sensor size
- 1/1.7"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 7.44 × 5.62 mm
- Диагонал на сензора
- 9.33 mm
- Resolution
- 4024 × 3036
- Max. frame rate
- 9.7 fps @ 4024 × 3036 Mono 8
- Dynamic range
- 70.5 dB
- SNR
- 40.5 dB
- Gain
- 0 dB to 20 dB
- Exposure time
- 34 μs to 2 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
- Digital I/O
- 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports PoE
- Power consumption
- Typ. 1.9 W @ 12 VDC
Mechanical
- Lens mount
- C-mount or M12-mount
- Dimension
- 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 45 g (0.1 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- RoHS
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
22.3 mm
Мащаб: 0.074×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
