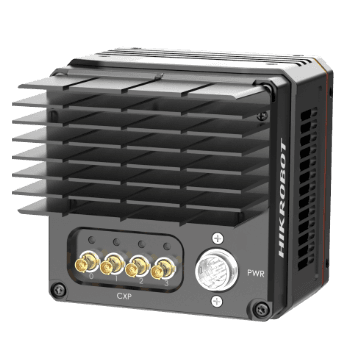

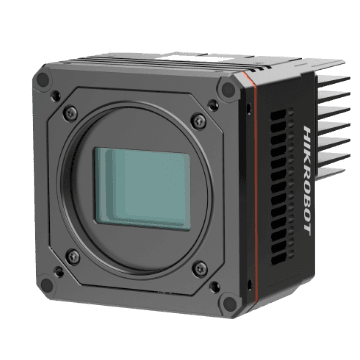

103MP Area Scan Camera, CoaXPress, GMAX32103, Mono, M58-mount, without fan

Name: 103MP Area Scan Camera, CoaXPress, GMAX32103, Mono, M58-mount, without fan
Brand: Hikrobot
SKU: MV-CH1030-90YM-M58S-NN

MV-CH1030-90YM-M58S-NNHikrobotСензор: GMAX32103 Global shutter →

Заяви оферта Datasheet PDF CAD чертеж

> 25 MP CoaXPress Area Scan камери — GMAX32103, Global shutter, CMOS, M58-mount

Model

Product Model: MV-CH1030-90YM-M58S-NN
Type: 103MP Area Scan Camera, CoaXPress, GMAX32103, Mono, M58-mount, without fan

Performance

Sensor type: CMOS, global shutter
Sensor model: Gpixel GMAX32103
Pixel size: 3.2 μm × 3.2 μm
Sensor size: 36.1 mm × 29.4 mm
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 36.04 × 29.44 mm
Диагонал на сензора: 46.54 mm
Resolution: 11264 × 9200
Max. frame rate: 24.3 fps @ 11264 × 9200 Mono 8
Dynamic range: 63.7 dB
SNR: 39.9 dB
Gain: 1.4 x to 5.2 x
Exposure time: 20 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono/color: Mono
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: CoaXPress with Micro-BNC interface
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply: 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumption: Typ. 10.4 W @ 24 VDC

Mechanical

Lens mount: M58*0.75, flange back length 11.48 mm
Dimension: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
Weight: Approx. 650 g (1.4 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or frame grabber software meeting with CoaXPress Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
Compatibility: CoaXPress, GenlCam
Certification: CE, RoHS, KC

Фърмуер

MV_CH1030_90YM_STD_V4.1.22_260522_HIKROBOT.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

108 mm

Мащаб: 0.36×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
