GigE 3D камери
Model
- Product Model
- MV-DL2125-04H-R
- Type

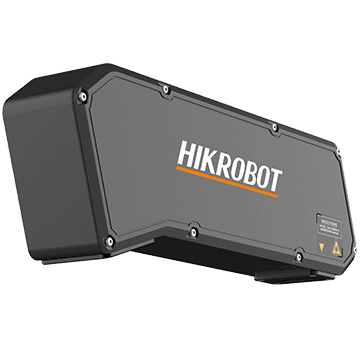

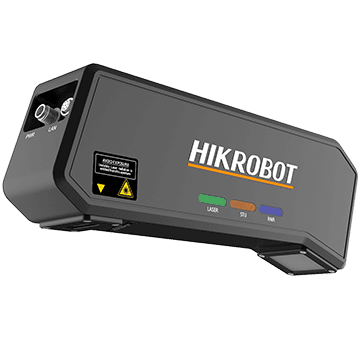

- Line Laser 3D Camera
Performance
- Near field of view
- 1000 mm
- Far field of view
- 2600 mm
- Clearance distance (CD)
- 700 mm
- Measurement range (MR)
- 1000 mm
- Detection accuracy
- ± 5 mm (regular object)
- Detection speed
- 3 m/s @ ±5 mm detection accuracy
- Scan frame rate
- 600 fps @ 1 m3 measurement range
- Data type
- Point cloud data, length/width/height, integral volume, peak coordinates, depth image
- Trigger mode
- External trigger, encoder trigger (max. 15 KHz trigger signal supported)
- Laser safety class
- Class 3B
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1.
- Power supply
- 12 VDC to 24 VDC
- Power consumption
- Typ. 10 W @ 12 VDC
Mechanical
- Dimension
- 354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9")
- Weight
- 1.6 kg (3.5 lb.)
- Temperature
- Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20%RH to 85% RH, no condensation
General
- Client software
- 3DMVS, CodePlatform
- Operating system
- 32/64-bit Windows 7/10
- Certification
- CE
