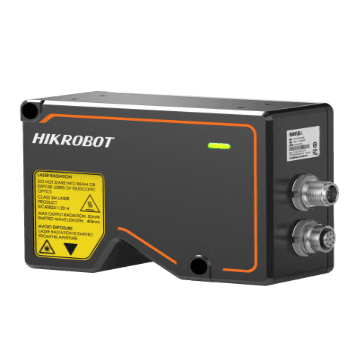

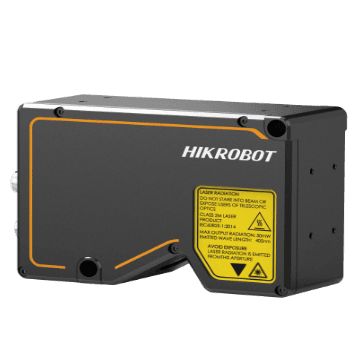

MV-DP2060-01P(0-STD)

Name: MV-DP2060-01P(0-STD)
Brand: Hikrobot
SKU: MV-DP2060-01P

MV-DP2060-01PHikrobot

GigE 3D камери — IP67

Model

Data points/profile: 2048
Reference distance: 64 mm
Measurement range (Z-axis): 26 mm
Measurement range (X-axis): 27 mm @ near field of view 31.5 mm @ reference distance 36 mm @ far field of view
Resolution (Z-axis): 1.45 μm to 2.83 μm
Repeatability (Z-axis)*: 0.49 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 13.2 μm to 18.5 μm
Scan frame rate: 660 Hz (within max. measurement range), max. 10 kHz (in ROI mode)
Data output: Original image, profile data, depth image, brightness image
Trigger mode: Software trigger, hardware trigger (differential encoder)
Laser safety class: Class 3R
Wavelength: 405 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power consumption: Typ. 13.8 W @ 24 VDC
Power supply: 24 VDC

Dimension: 128.5 mm × 93 mm × 62 mm (5.1" × 3.7" × 2.4")
Weight: Approx. 850 g (1.9 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS, VM3D, or third-party software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
