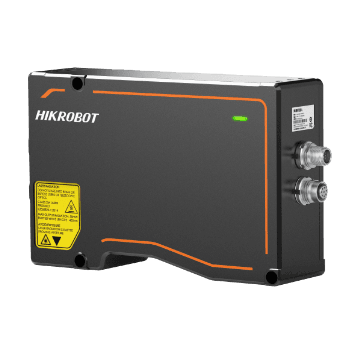

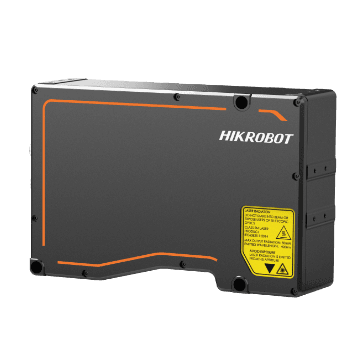

MV-DP2470-01P(O-STD) V2.0

Name: MV-DP2470-01P(O-STD) V2.0
Brand: Hikrobot
SKU: MV-DP2470-01PV2.0

MV-DP2470-01PV2.0Hikrobot

GigE 3D камери — IP67

Model

Data points/profile: 3200
Reference distance: 565 mm
Measurement range (Z-axis): 670 mm
Measurement range (X-axis): 142 mm @ near field of view 315 mm @ reference distance 488 mm @ far field of view
Resolution (Z-axis): 10.39 μm to 169.79 μm
Repeatability (Z-axis)*: 4.45 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 43.9 μm to 177.4 μm
Scan frame rate: 1.7 kHz to 23.9 kHz (high frame rate mode)
Data output: Profile data, depth image, brightness image
Trigger mode: Software trigger, hardware trigger (differential encoder)
Laser safety class: Class 3B
Wavelength: 405 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Power supply: 24 VDC
Power consumption: Typ. 15.2 W @ 24 VDC

Dimension: 185.5 mm × 125.5 mm × 59 mm (7.3" × 4.9" × 2.3")
Weight: Approx. 1450 g (3.2 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS, VM3D, or third-party software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
