Вижън компоненти — PCI-E gen2 × 4
Model
- Product Model
- MV-GC1102IOL
- Type

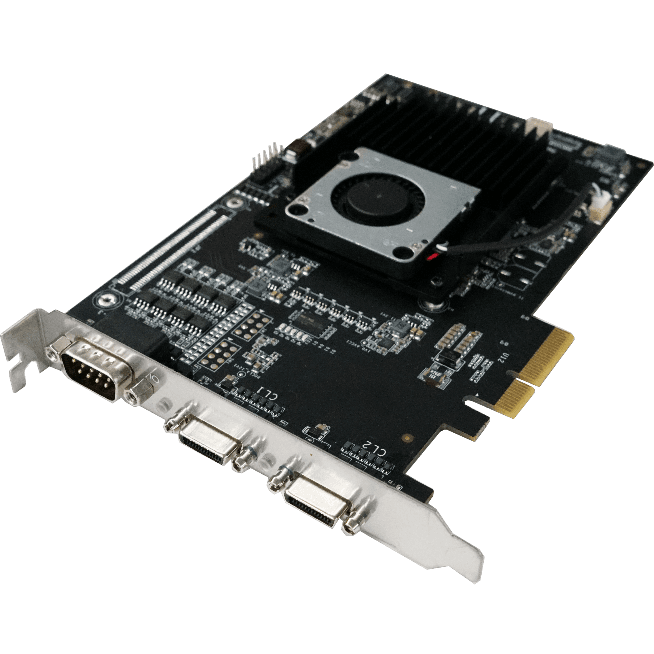

- MV-GC1102IOL Frame Grabber
Performance
- Configuration mode
- Base, Medium, Full, 80-bit, Lite
- Pixel clock
- 20 MHz to 85 MHz
Memory
- On-board memory
- 1 GB DDR3-RAM
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
- Indicator
- 1
Camera interface
- Standard
- Camera Link 2.1
- Interface
- SDR × 2
- Power output
- PoCL, each channel provides 4 W@ 12 VDC at most
- Camera type supported
- Camera Link industrial camera
- Camera quantity supported
- 2 at most
- Camera connection speed
- 6.8 Gbps
- Stream
- 2
- Stream indicator
- 2
Processing feature
- Pixel format
- Mono 8/10/12/16, Bayer 8/10/12/16, RGB 8, BGR 8
GPIO
- I/O Type
- Configurable input/output × 8, compatible with single-ended/differential Line 2/3 supports 3.3 VDC to 26 VDC input and 3.3 VDC to 26 VDC output Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output
- Connector

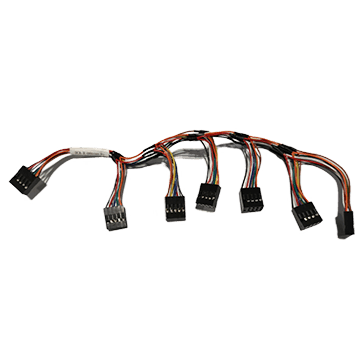

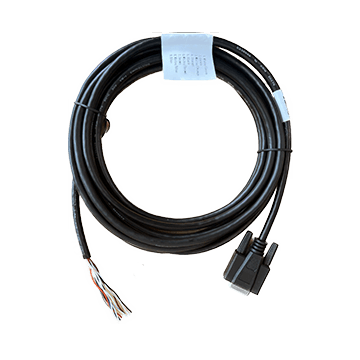

- DB9 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Electrical feature
- Power consumption
- Typ. 9 W (without PoCL)
Mechanical
- Dimension
- 181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
- Humidity
- 10% to 95% RH, non-condensing
General
- Client software
- MVS
- Operating system
- 32/64-bit Windows 7/10
- Certification
- CE, RoHS, KC
