Вижън компоненти — PCI-E gen2 × 4
Model
- Product Model
- MV-GE2002L V2.0
- Type

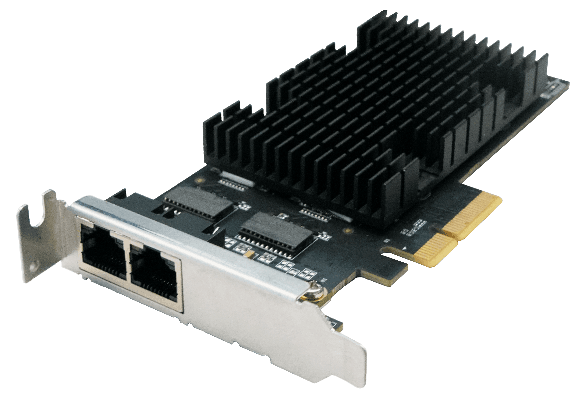

- Dual GbE Adaptor Low profile V2.0
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth)
Camera interface
- Standard
- IEEE 802.3
- Interface
- RJ45 × 2
- Camera type supported
- GigE industrial camera
- Camera quantity supported
- 2 at most
- Camera connection speed
- 10/100/1000 Mbps
- Stream
- 2
Electrical feature
- Power consumption
- Typ. 4.3 W
Mechanical
- Dimension
- 161.4 mm × 79.2 mm × 20.7 mm (6.4" × 3.1" × 0.8")
- Weight
- 125 g (0.3 lb.)
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Operating system
- Windows 7/10/11, Linux
- Certification
- CE, RoHS, KC
