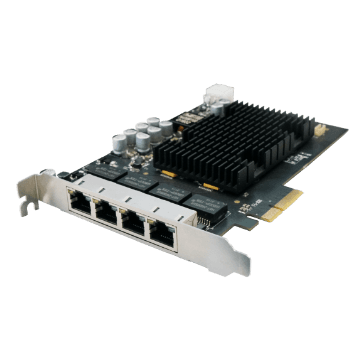

Вижън компоненти — PCI-E gen2 × 4
Model
- Product Model
- MV-GE2004P
- Type
- Quad GbE PoE Adaptor V2.0
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth)
Camera interface
- Standard
- IEEE 802.3
- Interface
- RJ45 × 4
- Camera type supported
- GigE industrial camera
- Camera quantity supported
- 4 at most
- Camera connection speed
- 10/100/1000 Mbps
- Stream
- 4
Electrical feature
- Power consumption
- Typ. 9 W (without PoE)
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Weight
- 201 g (0.4 lb.)
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Operating system
- Windows 7/10/11, Linux
- Certification
- CE, RoHS, KC
