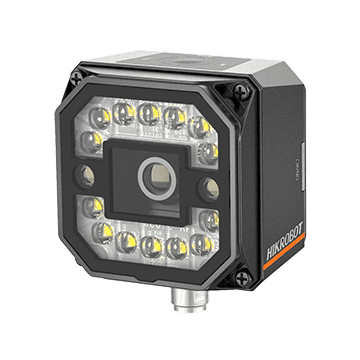

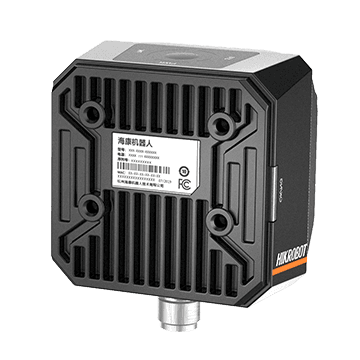

12mm focal length 1.3MP Compact Industrial Code Reader

Name: 12mm focal length 1.3MP Compact Industrial Code Reader
Brand: Hikrobot
SKU: MV-ID3013PM-12M-WBN

MV-ID3013PM-12M-WBNHikrobotGlobal shutter →

1–2 MP Четци на кодове — 12 mm, Global shutter, M12-mount, IP67

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code Stacked codes: PDF417, MicroPDF417
Max. frame rate: 60 fps
Max. reading speed: 84 codes/sec
Sensor type: Global shutter, mono, 1/2.7", 4 μm × 4 μm
Resolution: 1280 × 1024
Exposure time: 35 μs to 1 sec
Gain: 0 dB to 28 dB

Data interface: Fast Ethernet (100 Mbit/s)
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU
Digital I/O: 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top.;17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1/2) × 3, isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top.
Power supply: 24 VDC
Power consumption: Avg.: 9 W @ 24 VDC (light source enabled) Max.: 48 W @ 24 VDC (light source enabled)

Focal length: 12 mm
Field of view: 24° (H) × 19° (V)
Lens mount: M12-mount, mechanical focus supported
Lens cap: Half-polarized lens cap by default. Transparent, fully-polarized, diffused, and long-wave IR lens caps are optional.
Light source: White light by default. Red/blue/IR/UV light is optional.
Indicator: Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Shell material: ADC12
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Weight: Approx. 280 g (0.6 lb.)
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)
Vibration resistance: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
