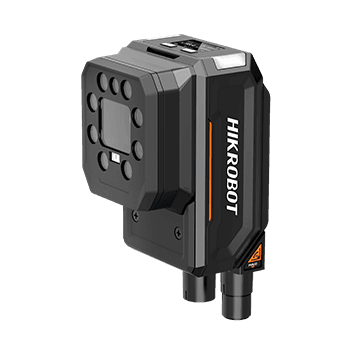

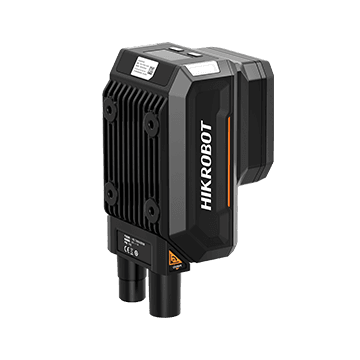

MV-ID5050XM-12L-RBN
2–5 MP GigE Четци на кодове — 12 mm, Global shutter, CMOS, IP67
Model
- Product Model
- MV-ID5050XM-12L-RBN
- Type
- MV-ID5050XM-12L-RBN
Performance
- Symbologies
- 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin 2D stacked codes: PDF417, MicroPDF417
- Max. frame rate
- 92 fps
- Max. reading speed
- 120 codes/sec
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 1/1.45"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 8.39 × 7.07 mm
- Диагонал на сензора
- 10.97 mm
- Resolution
- 2432 × 2048
- Exposure time
- 38 μs to 3 ms
- Gain
- 0 dB to 37 dB
- Mono/color
- Mono
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Communication protocol
- SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP
- Digital I/O
- 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Supports device triggering via pressing on touchscreen.
- Power supply
- 24 ± 10% VDC
- Power consumption
- Avg.: 11 W @ 24 VDC (light source enabled) Max.: 36 W @ 24 VDC (light source enabled)
Mechanical
- Focal length
- 12 mm
- Lens mount
- D14-mount, liquid lens focus supported
- Lens cap
- Half polarization lens cap by default. Transparent and full polarization caps are optional.
- Light source
- Red light by default. White/blue/IR light is optional.
- Indicator
- Multi-directional device body indicator
- Shell material
- Metal
- Dimension
- Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
- Weight
- Approx. 405 g (0.9 lb.)
- Ingress protection
- IP67 (under proper installation of waterproof lens cap)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
- Vibration resistance
- Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
- Shock resistance
- Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
General
- Client software
- IDMVS
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
25.2 mm
Мащаб: 0.084×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
