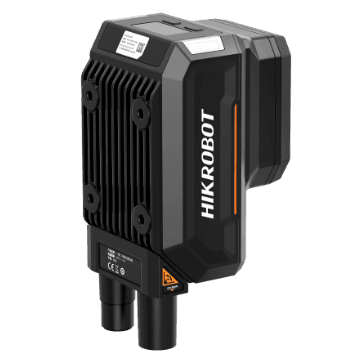

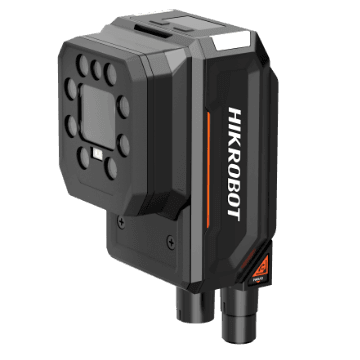

MV-ID5120RM-08L-RBN

Name: MV-ID5120RM-08L-RBN
Brand: Hikrobot
SKU: MV-ID5120RM-08L-RBN

MV-ID5120RM-08L-RBNHikrobotRolling shutter →

12–25 MP GigE Четци на кодове — 8 mm, Rolling shutter, IP67

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin Stacked codes: PDF417, MicroPDF417
Max. frame rate: 10 fps
Max. reading speed: 30 codes/sec
Sensor type: Rolling shutter, mono, 1/1.57", 2 μm × 2 μm
Resolution: 4096 × 3024
Exposure time: 33 μs to 1 sec
Gain: 0 dB to 34 dB

Data interface: Gigabit Ethernet (1000 Mbit/s)
Communication protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, Fins
Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Supports device triggering via pressing button on device and smart tune.
Power supply: 24 VDC
Power consumption: Avg.: 15.5 W @ 24 VDC (light source enabled) Max.: 36 W @ 24 VDC (light source enabled)

Focal length: 8 mm
Lens mount: D14-mount, liquid lens focus supported
Lens cap: Half-polarized lens cap by default. Transparent and fully-polarized caps are optional.
Light source: Red light by default. White/blue/IR light is optional.
Indicator: Multi-directional device body indicator
Dimension: Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
Shell material: Metal
Weight: Approx. 405 g (0.9 lb.)
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Temperature: Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)
Vibration resistance: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
