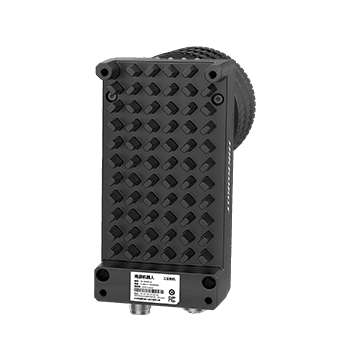

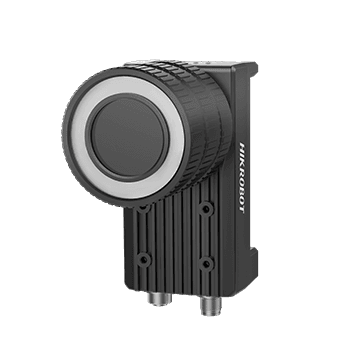

12MP Logistic Code Reader

Name: 12MP Logistic Code Reader
Brand: Hikrobot
SKU: MV-ID6120PM-00C-NNG

MV-ID6120PM-00C-NNGHikrobotGlobal shutter →

12–25 MP GigE Четци на кодове — Global shutter, CMOS, C-mount, IP67

Model

Symbologies: 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max. frame rate: 28 fps
Max. reading speed: 84 codes/sec
Sensor type: CMOS, global shutter
Pixel size: 3.45 μm × 3.45 μm;3.2 μm × 3.2 μm
Sensor size: 1.1";1"
Resolution: 4096 × 3072
Exposure time: 16 μs to 1 sec
Gain: 0 dB to 37 dB;0 dB to 40 dB
Mono/color: Mono
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP

Data interface: Gigabit Ethernet (1000 Mbit/s)
Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power supply: 12 VDC to 24 VDC
Max. power consumption: 17 W @ 24 VDC

Lens mount: C-mount
Light source: Not included
Lens cap: Included
Dimension: 126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5")
Weight: Approx. 750 g (1.7 lb.)
Ingress protection: IP67 ( under proper installation of waterproof lens cap)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
