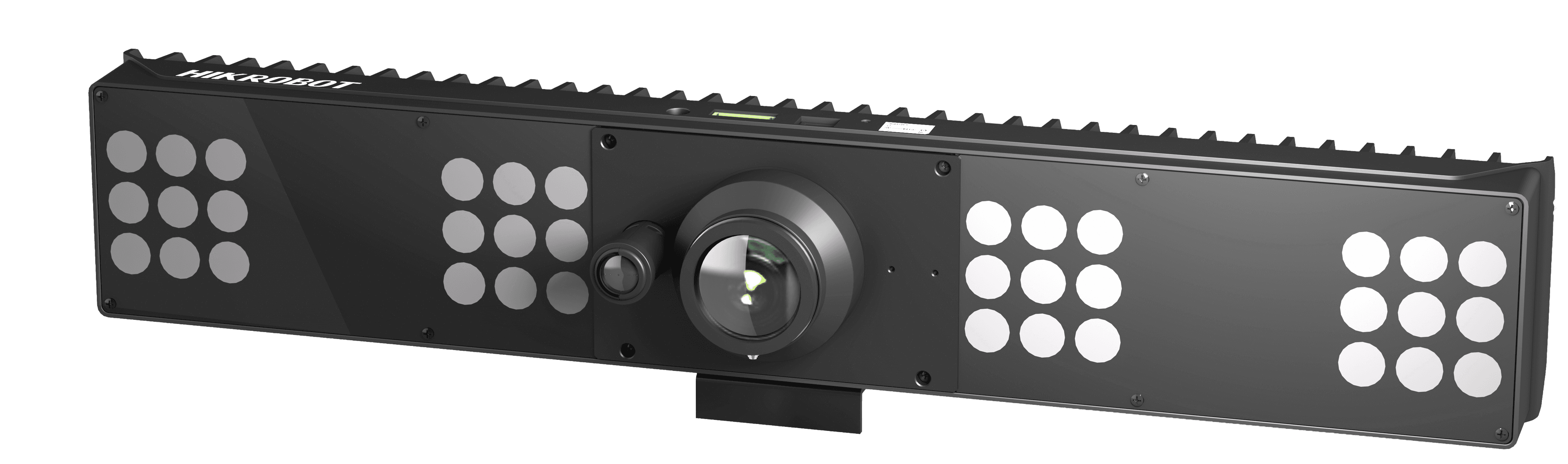

8K Logistic Code Reader
MV-ID7080EM-35F-WHAV3.0Hikrobot
< 1 MP GigE Четци на кодове — 35 mm, F-mount
Model
- Product Model
- MV-ID7080EM-35F-WHA V3.0
- Type
- 8K Logistic Code Reader
Performance
- Symbologies
- 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix Stacked barcode: PDF417
- Max. line frequency
- 15 kHz
- Max. operating speed of conveyer belt
- 2.5 m/s
- Resolution
- 7424 × 1
- Focal length
- 35 mm
- Best working distance
- 1000 mm
- Field of view (range)
- 1000 mm @10 mil
- Mono/color
- Mono
- Communication protocol
- SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, opto-isolated input (LineIn 1) × 1, opto-isolated output (LineOut 3/4) × 2, and RS-232 × 1.
- Power supply
- 48 VDC
- Max. power consumption
- 180 W @ 48 VDC
Mechanical
- Lens mount
- F-mount, flange back focal length 46.5 mm
- Aiming system
- Green LED
- Dimension
- 608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6")
- Weight
- Approx. 5 kg (11 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH, non-condensing
General
- Client software
- IDMVS
- Operating system
- 32/64-bit Windows XP/7/10
- Certification
- CE, RoHS, KC
