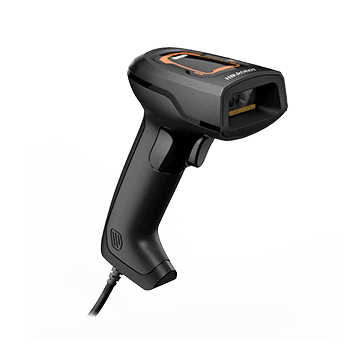

Enterprise USB-Wired Handheld Code Reader

Name: Enterprise USB-Wired Handheld Code Reader
Brand: Hikrobot
SKU: MV-IDH2000/03SR/03WN/U

MV-IDH2000/03SR/03WN/UHikrobot

< 1 MP USB2 Четци на кодове — 3.1 mm, CMOS, IP42

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
Min. accuracy: 4 mil
Sensor type: CMOS
Resolution: 640 × 480
Depth of field: EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm
Field of view: Horizontal 42°, vertical 32°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%
Communication protocol: SmartSDK, Serial, USB (HID/CDC)

Focal length: 3.1 mm
Ambient illumination: 0 lux to 100000 lux
Light source: White LED
Aiming system: Orange LED
Prompt: LED indicator, buzzer, vibrator
Dimension: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7")
Weight: Approx. 160 g (0.4 lb.)
Ingress protection: IP42
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity: 5% RH to 95% RH (no condensation)
