LAN Smart Base
MV-IDH3000B/SBASE/LHikrobot
Serial Четци на кодове — IP40
Model
- Product Model
- MV-IDH3000B/SBASE/L
- Type
- LAN Smart Base
Wireless communication
- Communication mode
- Bluetooth BT 5.0, BLE
- Wireless range
- 100 m (open area)
- Communication protocol
- SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/s), RS-232, DC terminal
- Power supply
- 12 VDC to 24 VDC
- Current consumption
- 0.7 A (max.), 0.06 A (during standby)
- Charging time
- 4 h
Mechanical
- Dimension
- 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
- Weight
- Approx. 180 g (0.4 lb.)
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Ingress protection
- IP40
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- IDMVS
- Certification
- CE, KC
Фърмуер
Видео
От YouTube канала на производителя — отварят се в YouTube.
Handheld Scanner/IDH3000 Series Test Video/Read Every Barcode in Any Industries
Hikrobot · 22.12.2022 · 0:46 ↗
За този модел
Handheld Scanner/IDH Series/MV Tech
Hikrobot · 29.5.2025 · 14:31 ↗
Моделът се споменава във видеото
Vision, Seeing Infinity/2023 Hikrobot Machine Vision New Product Launch Event
Hikrobot · 21.4.2023 · 1:11:46 ↗
Моделът се споменава във видеото
Подобни продукти

MV-IDH3000/13NR/05RN/LE

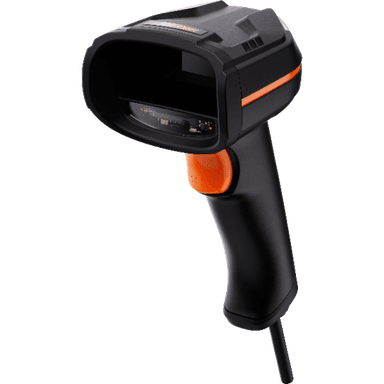

Industrial Wired Handheld Code Reader(IP LAN)

MV-IDH3000/13SR/05RN/LE
Industrial Wired Handheld Code Reader(IP LAN)

MV-IDH3000B/13NR/05RN/LES
Industrial Wireless Handheld Code Reader(IP LAN)

MV-IDH3000B/13SR/05RN/LES
Industrial Wireless Handheld Code Reader(IP LAN)

MV-IDH3000/13NR/05RN/L
Lan Handheld Code Reader

MV-IDH3000/13SR/05RN/L
Lan Handheld Code Reader

MV-IDH3000/13NR/05RN/U
USB Handheld Code Reader

MV-IDH3000/13SR/05RN/U
USB Handheld Code Reader

MV-IDH3000B/SBASE/U

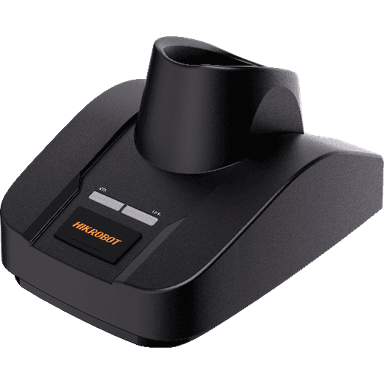

USB Smart Base
