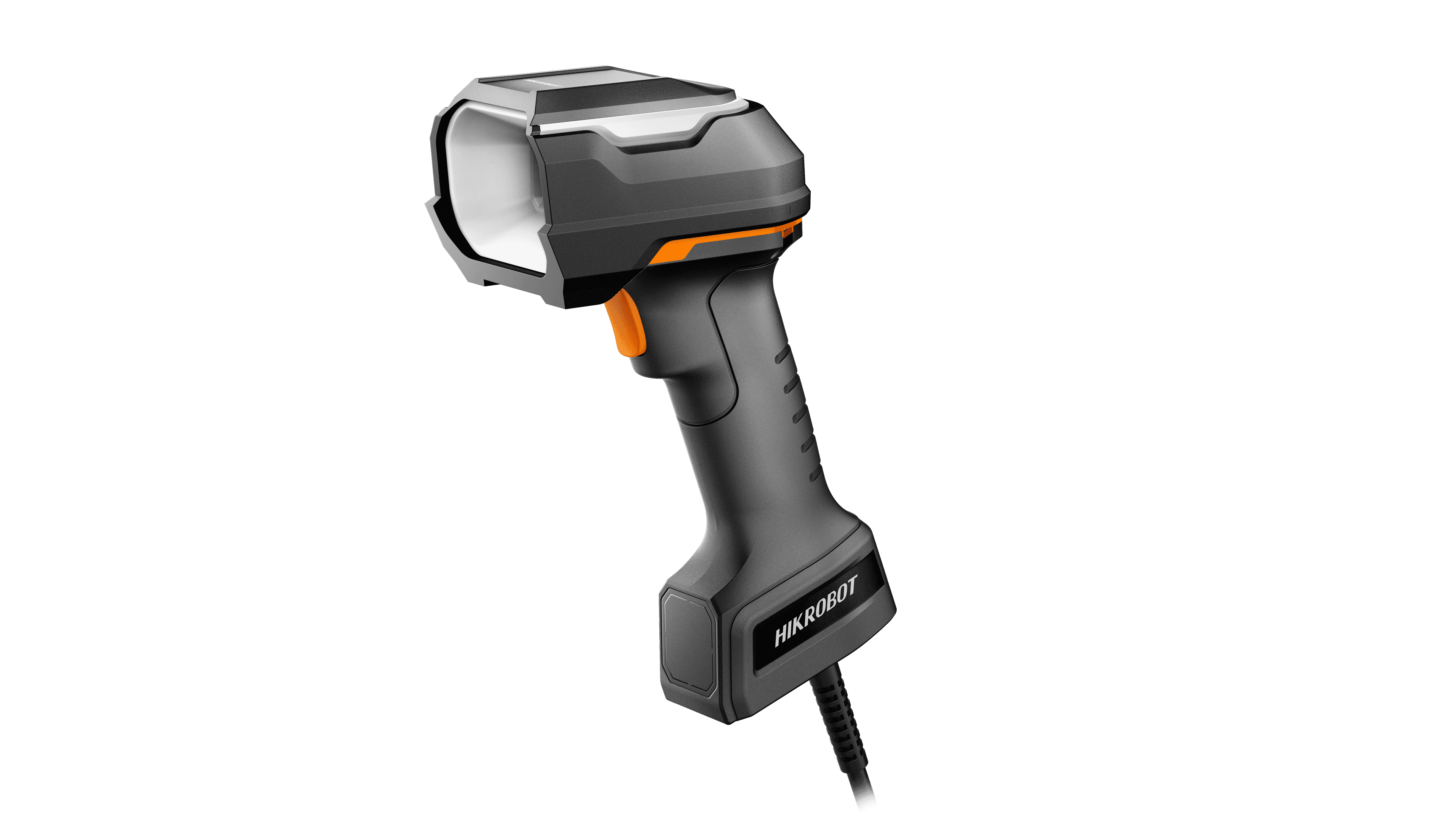

Ultra-ragged Wired Handheld Code Reader

Name: Ultra-ragged Wired Handheld Code Reader
Brand: Hikrobot
SKU: MV-IDH9000/13DP/04RP/U

MV-IDH9000/13DP/04RP/UHikrobot

1–2 MP USB2 Четци на кодове — 4.3 mm, CMOS, IP67

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417
Min. accuracy: 3 mil
Sensor type: CMOS
Resolution: 1280 × 1024
Depth of field: Code128 (3 mil): 0 mm to 100 mm1 Code 128 (10 mil): 0 mm to 250 mm1 Code 128 (20 mil): 0 mm to 350 mm1 Code 39 (5 mil): 0 mm to 150 mm1 Data Matrix (5 mil): 5 mm to 75 mm QR Code (20 mil): 0 mm to 250 mm1
Field of view: Horizontal 43.6°, vertical 35.5°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%
Communication protocol: SmartSDK, USB (HID/CDC), Serial2

Focal length: 4.3 mm
Ambient illumination: 0 lux to 100000 lux
Light source: Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene.
Aiming system: 650 nm laser (red light)
Prompt: LED indicator, buzzer, vibrator
Display: 0.96" OLED display
Dimension: 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9")
Weight: Approx. 488 g (1.1 lb.) (without cable)
Ingress protection: IP67
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity: 5% RH to 95% RH (no condensation)
Drop height: Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times
Chemically resistant: ISO 16750
Static electricity resistant: ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge)
