5–12 MP GigE Четци на кодове — 16 mm (0.6"), F2.4 to F16
Model
- Product Model
- MV-IDS012M-16C-C
- Type

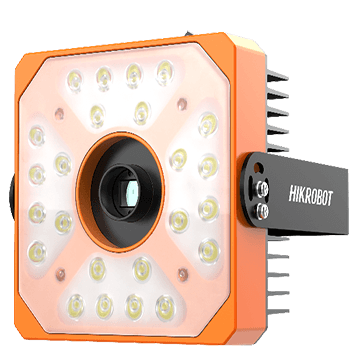

- 12MP Logistic Code Reader
Performance
- Symbologies
- 1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE 2-dimensional codes: QR Code, Data Matrix
- Max. frame rate
- 20 fps
- Max. reading speed
- 60 codes/sec
- Focal length
- 16 mm (0.6")
- Best working distance
- 1870 mm (73.6")
- Field of view (range)
- 870 mm × 635 mm @10 mil
- Depth of field
- 700 mm (27.6")
- Resolution
- 3968 × 3000
- Exposure time
- 48 μs to 0.5 sec
- Gain
- 0 dB to 40 dB
- Aperture
- F2.4 to F16
- Center illuminance
- 11000 lux @1000 mm
- Uniformity
- 0.56
- Luminous flux
- 5200 lm
- Light source wavelength
- 420 nm to 730 nm
- Color temperature
- 6500 K
- Mono/color
- Mono
- Pixel format
- Mono 8
Electrical feature
- Data interface
- Gigabit Ethernet
- Digital I/O
- 6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4). 3-pin green terminal provides RS-232 serial port.
- Power supply
- 24 VDC
- Max. power consumption
- 53 W @24 VDC
Mechanical
- Dimension (without lens)
- 164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
- Weight (without lens)
- Approx. 990 g (2.2 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Humidity
- 20% to 80% RH, non-condensing
General
- Client software
- IDMVS
- Operating system
- 32/64-bit Windows XP/7/10
- Certification
- CE
