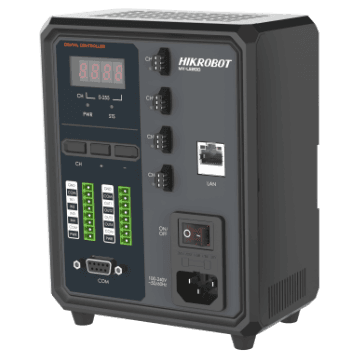

Digital Light Controller，4 channel，200W/24V
MV-LE200-200W24-4TDHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE200-200W24-4TD
- Type
- Digital Light Controller，4 channel，200W/24V
Performance
- Drive mode
- Digital, constant voltage
- Lighting mode
- Continuous, strobe
- PWM frequency
- 125 kHz
- Strobe overdrive
- Not support
- Channel
- 4-channel
- Dimming mode
- Control panel (via pressing button), software (serial port or network interface)
- Brightness level
- 0 to 255
- Lighting response time
- < 10 μs
- Trigger mode
- External trigger and internal trigger
- Communication protocol
- UDP, Serial
- Applicable product
- Ring light, bar light, flat light, coaxial light, etc.
Electrical feature
- Input voltage
- 100 VAC to 240 VAC, 50 Hz/60 Hz
- Input current
- 1.8 A (115 VAC), 1A (230 VAC)
- Output voltage
- 24 VDC
- Output current
- Max. 8.3 A
- Output power
- Max. 200 W
- Output current for each channel
- Max. 3 A
- Trigger in
- High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
- Trigger out
- High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
- Power supply interface
- C13 220 VAC interface
- Console interface
- RJ45 network interface, DB9F serial port
- Digital I/O
- Opto-isolated input × 4, opto-isolated output × 4
- Lighting output connector
- SMR-03V-BC
- Dimension
- 130 mm × 83.8 mm × 169.5 mm (5.1" × 3.3" × 6.7")
- Shell material
- Plastic
- Weight
- Approx. 733 g (1.6 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
- Cooling mode
- Fan cooling
General
- Certification
- CE, KC
