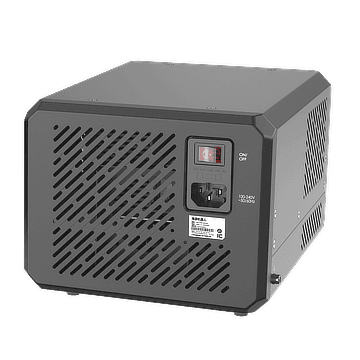

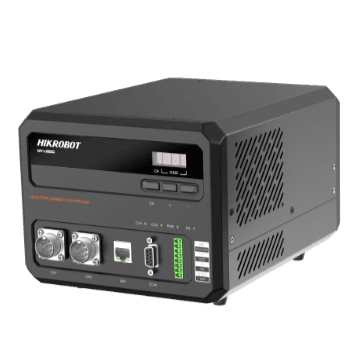

Digital Light Controller，2 channel，200W/48V
MV-LE201-200W48-2TDHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE201-200W48-2TD
- Type
- Digital Light Controller，2 channel，200W/48V
Performance
- Drive mode
- Digital, constant current
- Lighting mode
- Continuous, strobe
- Channel
- 2-channel
- Dimming mode
- Control panel (via pressing button), software (serial port or network interface)
- Brightness level
- 0 to 255
- Lighting response time
- < 10 μs
- Trigger mode
- External trigger and internal trigger
- Communication protocol
- UDP, Serial
- Applicable product
- Line scan light (with 19M-8H and 19M-8A connector).
Electrical feature
- Input voltage
- 100 VAC to 240 VAC, 50 Hz/60 Hz
- Input current
- 1.8 A (115 VAC), 1 A (230 VAC)
- Output voltage
- 48 VDC
- Output current
- Max. 4 A
- Output power
- Max. 200 W
- Output current for each channel
- Max. 4 A
- Trigger in
- High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
- Trigger out
- High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
- Power supply interface
- C13 220 VAC interface
- Console interface
- RJ45 network interface, DB9F serial port
- Digital I/O
- Opto-isolated input × 2, opto-isolated output × 2
- Lighting output connector
- 19M-8H (Female) × 2
- Dimension
- 257.3 mm × 180 mm × 150.8 mm (10.1" ×7.1" × 5.9")
- Shell material
- Plastic + SECC
- Weight
- 2070 g (4.6 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
- Cooling mode
- Fan cooling
General
- Certification
- CE, KC
