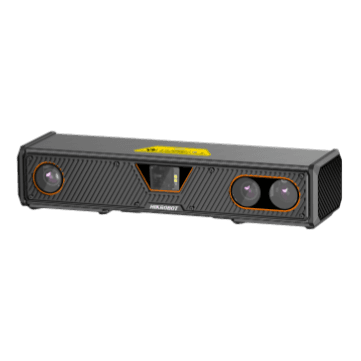

Galvanometer Laser 3D Camera(MV-RS-Ultra-M)
MV-RS-ULTRA-MHikrobot
12–25 MP GigE 3D камери — IP65
Model
- Product Model
- MV-RS-Ultra-M
- Type
- Galvanometer Laser 3D Camera(MV-RS-Ultra-M)
Performance
- Near field of view
- 540 mm × 530 mm @ 700 mm
- Typical field of view
- 890 mm × 760 mm @ 1000 mm
- Far field of view
- 1240 mm × 1060 mm @ 1400 mm
- Clearance distance (CD)
- 700 mm
- Measurement range (MR)
- 700 mm
- Repeatability (Z-axis)*
- 0.06 mm @ 1000 mm
- VDI/VDE accuracy*
- 0.12 mm @ 1000 mm
- Resolution
- RGB: 4000 × 3000 Depth: 2448 × 2048
- Data acquisition time
- 0.4 s to 0.9 s
- Image output delay
- 1.0 s to 1.7 s
- Data type
- Original image (mono and color images), depth image, RGB-D image
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
- Power supply
- 24 VDC
- Power consumption
- Typ. 15 W @ 24 VDC
Mechanical
- Dimension
- 385.7 mm × 81.8 mm × 127 mm (15.2" × 3.2" × 5")
- Weight
- Approx. 2.3 kg (5.1 lb.)
- Ingress protection
- IP65
- Temperature
- Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
Laser
- Laser safety class
- Class 2
- Wavelength
- 638 nm
General
- Client software
- RobotPilot, HiViewer
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Certification
- RoHS
