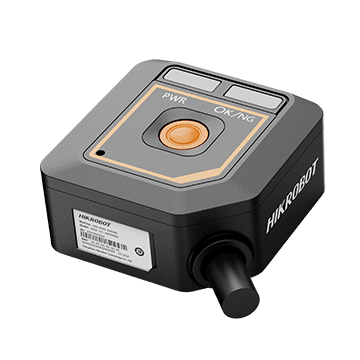

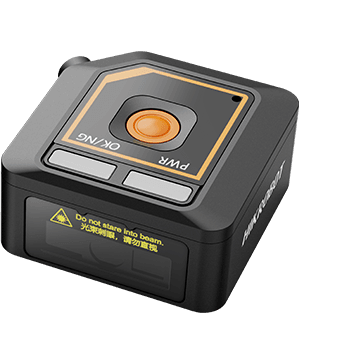

SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 240mm
< 1 MP Смарт камери — 3.1 mm, Global shutter, CMOS, IP54
Model
- Product Model
- MV-SC1003M-03S-WBN-SR
- Type
- SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 240mm
Tool
- Vision tool
- Measurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence Count: Spot count, edge count, and contour count Recognition: Category recognition, and classification registration Logic: Calculator, logic judge, condition judge, combination judge, and format output Location: Fixture
- Solution capacity
- Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored.
- Communication protocol
- Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV
Camera
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.74 μm × 3.74 μm
- Sensor size
- 1/6"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 2.39 × 1.8 mm
- Диагонал на сензора
- 2.99 mm
- Resolution
- 640 × 480
- Max. frame rate
- 15 fps
- Gain
- 1 dB to 23 dB
- Exposure time
- 60 μs to 7000 μs
- Pixel format
- Mono 8
- Mono/color
- Mono
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/s)
- Digital I/O
- Green terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1. Supports triggering device via pressing top trigger button.
- Power supply
- 12 VDC to 24 VDC
- Power consumption
- Avg. 1.5 W @ 12 VDC Max. 3 W @ 12 VDC
Mechanical
- Lens mount
- M5.8-mount
- Focal length
- 3.1 mm
- Working distance
- 240 mm
- Lens cap
- Transparent lens cap
- Light source
- White LED
- Aiming system
- 1 LED
- Indicator
- Power indicator (PWR), result indicator (OK/NG)
- Dimension
- 38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7")
- Weight
- Approx. 40 g (0.09 lb.) without cable
- Ingress protection
- IP54
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
- Vibration resistance
- Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
- Shock resistance
- Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
General
- Client software
- SCMVS
- Certification
- CE, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
7.17 mm
Мащаб: 0.024×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
