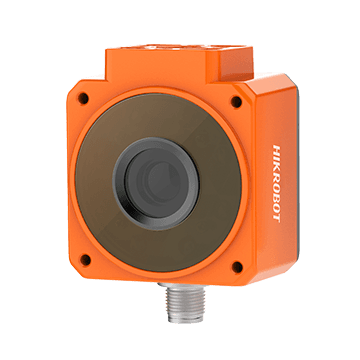

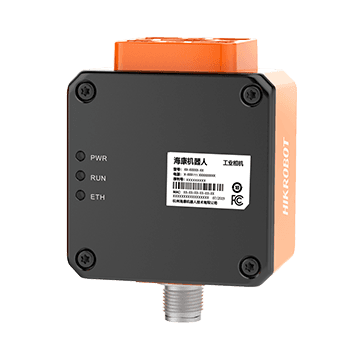

SC2000A AGV Guide Sensor，0.5MP，Color，M12-3mm focal length，focus 100mm
< 1 MP Serial Смарт камери — 3.4 mm, Global shutter, CMOS, IP65
Model
- Product Model
- MV-SC2005AC-03WBN
- Type
- SC2000A AGV Guide Sensor，0.5MP，Color，M12-3mm focal length，focus 100mm
Performance
- Symbologies
- 2-dimensional codes: DM-12, DM-14
- Max. frame rate
- 96 fps
- Max. reading speed
- 83 codes/sec
- Max. running speed
- 3 m/sec (it is the AGV's max. running speed)
- Sensor type
- CMOS, global shutter
- Pixel size
- 4.8 μm × 4.8 μm
- Sensor size
- 1/3.6"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 3.84 × 2.88 mm
- Диагонал на сензора
- 4.8 mm
- Resolution
- 800 × 600
- Exposure time
- 20 μs to 9000 μs
- Gain
- 1 dB to 330 dB
- Mono/color
- Color
- Pixel format
- RGB
- Communication protocol
- SmartSDK, UDP, Serial, Modbus RTU, PROFINET, EthernetIP
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/sec), RS-485
- Digital I/O
- 12-pin M12 connector provides power supply and RS-485 × 1
- Power supply
- 24 VDC
- Max. power consumption
- 18 W @ 24 VDC (self light source enabled) 3 W @ 24 VDC (self light source disabled)
Mechanical
- Focal length
- 3.4 mm
- Working distance
- 100 mm ± 5 mm
- Displacement accuracy
- 0.1 mm
- Angle accuracy
- 0.1°
- Field of view
- 86.9°
- Field of view (range)
- 114 mm × 85 mm
- Dimension
- 68 mm × 60 mm × 42.2 mm (2.7" × 2.4" × 1.7")
- Weight
- Approx. 200 g (0.4 lb.)
- Ingress protection
- IP65 (with proper installation of waterproof lens cap)
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 10% RH to 90% RH (no condensation)
General
- Client software
- IDMVS
- Certification
- CE, RoHS
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
11.5 mm
Мащаб: 0.038×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
