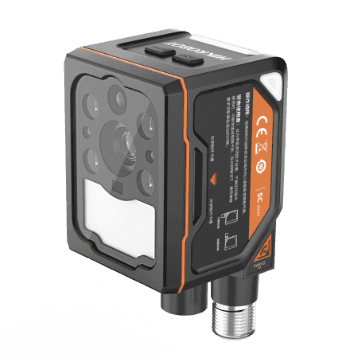

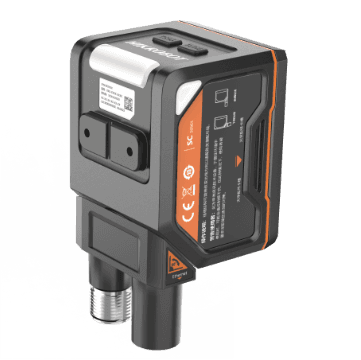

SC3000X series vision sensor，1.3MP，Mono，08mm focal length

Name: SC3000X series vision sensor，1.3MP，Mono，08mm focal length
Brand: Hikrobot
SKU: MV-SC3013XM-08M-WBN

MV-SC3013XM-08M-WBNHikrobotGlobal shutter →

Заяви оферта Datasheet PDF Ръководство Протокол (PDF)CAD чертеж

1–2 MP Смарт камери — 8 mm, Global shutter, CMOS, M12-mount

Model

Product Model: MV-SC3013XM-08M-WBN
Type: SC3000X series vision sensor，1.3MP，Mono，08mm focal length

Tool

Vision tool: Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection
Solution capacity: Supports importing and exporting project, up to 32 projects can be stored
Communication protocol: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Camera

Sensor type: CMOS, global shutter
Pixel size: 6.9 μm × 6.9 μm
Sensor size: 1/1.45"
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 8.39 × 7.07 mm
Диагонал на сензора: 10.97 mm
Resolution: 1216 × 1024
Max. frame rate: 60 fps
Gain: 0 dB to 15 dB
Exposure time: 6 μs to 1 sec
Pixel format: Mono 8
Mono/color: Mono

Electrical feature

Data interface: Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button
Power supply: 24 VDC
Power consumption: Avg. 7 W @ 24 VDC (light source enabled) Max. 22 W @ 24 VDC (light source enabled)

Mechanical

Lens mount: M12-mount, mechanical autofocus supported
Focal length: 8 mm
Lens cap: Polarized + diffuser + full-transparent lens cap
Light source: White spot light source. Red/blue/IR point light source is optional
Aiming system: 1 LED
Indicator: 360° visual indicator
Dimension: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Weight: Approx. 190 g (0.4 lb.)
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)
Vibration resistance: Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance: Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)

General

Client software: SCMVS
Certification: CE, KC

Фърмуер

MV_SC3013XM_XXM_WBN_GML_STD_V4.4.4_260624.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

25.2 mm

Мащаб: 0.084×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
