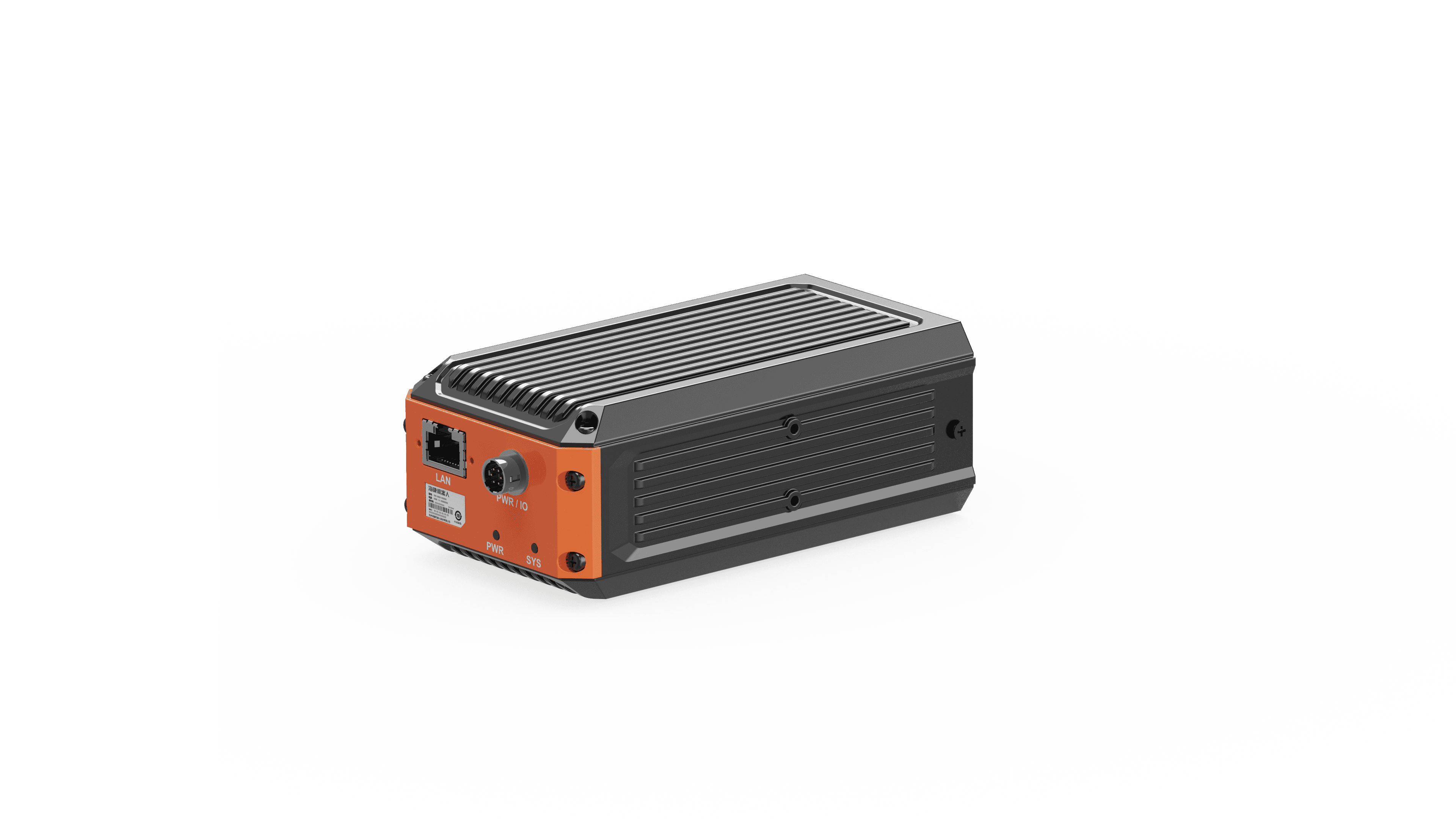

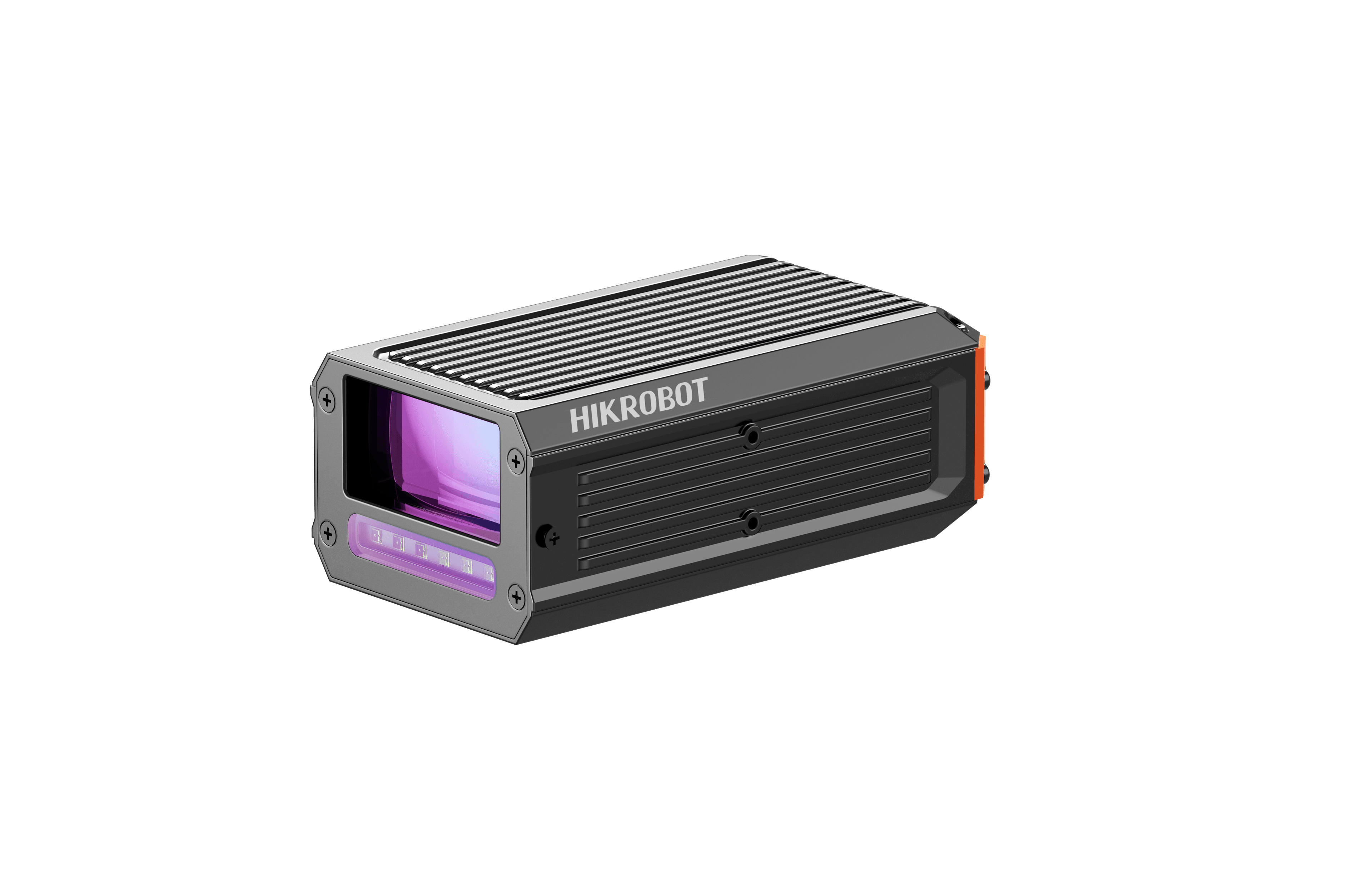

SC6500P Wafer ID Reader，Mono，Combined red light source
< 1 MP GigE Смарт камери — Global shutter, CMOS, M12-mount, IP40
Model
- Product Model
- MV-SC6500P-AI-WID-RBN
- Type
- SC6500P Wafer ID Reader，Mono，Combined red light source
Tool
- Function module
- Vision Master Platform (include deep learning module) and SCClient
- Algorithm capability
- SEMI OCR character, data matrix code, QR code, and barcode
- Communication protocol
- TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 1/3.4"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 4.86 × 1.99 mm
- Диагонал на сензора
- 5.25 mm
- Resolution
- 1408 × 576
- Max. frame rate
- 120 fps
- Gain
- 0 dB to 37 dB
- Exposure time
- 25 μs to 1 sec
- Pixel format
- Mono 8
- Mono/color
- Mono
Light Source
- LED
- Red LED (RGB is supported by bar light)
- Lighting method
- Multiple lighting methods (bright field lighting and dark field lighting)
- Illumination intensity
- Configure in software
- Indicator
- Power indicator (PWR), network indicator (LNK), and status indicator (SYS)
Platform
- Memory
- 8 GB
- Storage
- 64 GB
Lens Installation
- Lens mount
- M12-mount
- Focus mode
- Auto
- Installation height
- 40 mm to 50 mm (recommended)
- Field of view (range)
- 38 mm × 15 mm
- Depth of field
- ± 5 mm
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1
- Power supply
- 24 VDC
- Power consumption
- Avg. 11.5 W @ 24 VDC Max. 18 W @ 24 VDC
Mechanical
- Weight
- Approx. 829 g (1.8 lb.)
- Dimension
- 127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9")
- Ingress protection
- IP40
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
- Vibration resistance
- Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
- Shock resistance
- Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
General
- Certification
- CE, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
14.6 mm
Мащаб: 0.049×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Съвместими кабели за данни

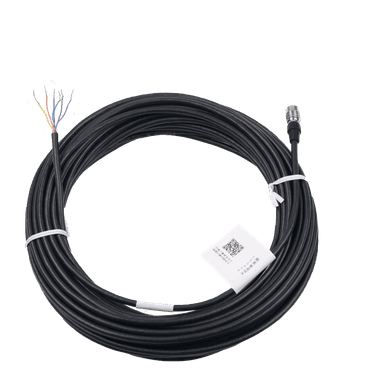

Кабели за захранване и I/O
Обективи, които пасват на тази камера
Филтрирано по байонет M12-mount и по покритие на сензора — кръгът на изображението е поне 5.25 mm, колкото е диагоналът на тази матрица. По-малък кръг затъмнява ъглите на кадъра. Питайте ни за потвърждение
MVL-HF0328-05S
3.37mm, F2.8, 1/2", 5MP Lens, M12-Mount
MVL-HF0628-05S
6mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF0828-05S
8mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF1228-05S
12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF1628-05S
16mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF2528-05S
