Повдигащият LMR е автоматизирано логистично средство, способно самостоятелно да поеме, повдигне и превози товара. Благодарение на повдигащия механизъм вдига товара от пода на по-високо положение и изпълнява задачи по транспорт и съхранение. Използва се масово в индустриалната и складовата логистика, където повишава производителността и намалява логистичните разходи.
Basic Parameter

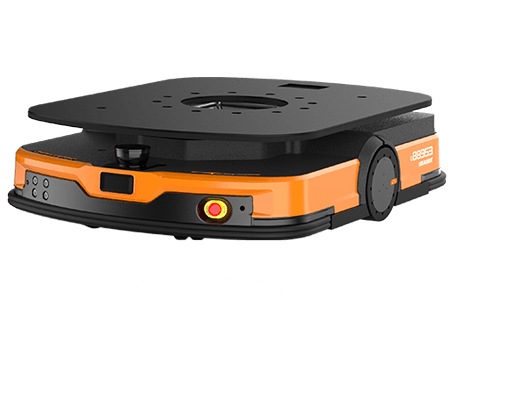

- Dimension (L × W × H)
- 1150 mm × 820 mm × 254 mm (45.28" × 32.28" × 10")
- Rotation Diameter
- 1200 mm (47.24")
- Chassis Above Ground
- 25 mm (0.98")
- Lifting Platform Dimension
- 1030 mm × 770 mm (40.55" × 30.31")
- Lifting Stroke
- 60 mm (2.36")
- Lifting Structure Type
- Electric
- Weight
- 185 kg (407.86 lb.)
- Rated Load
- 1000 kg (2204.62 lb.)
- Navigation Mode
- Laser SLAM/2D barcode/Visual SLAM(ground texture)
- Human-Machine Interaction
- Touchscreen
Safety Protection
- Front Laser Obstacle Installation Height
- 182 mm (7.17")
- Avoidance Scanning Angle
- 260°
- Max. Detection Range
- 25 m (984.25")
- Bumper Strip Type
- Pneumatic
- Bumper Strip Position
- Front/Rear
- Emergency Stop Button
- Support
Motion Performance
- Rated Running Speed (Empty)
- 2000 mm/s
- Rated Running Speed (Rated Load)
- 1800 mm/s
- Rated Acceleration (Empty)
- 1000 mm/s²
- Rated Acceleration (Rated Load)
- 600 mm/s²
- Rotation Speed (Empty)
- 200°/s
- Rotation Speed (Rated Load)
- 70°/s
- Gradeability
- 4°
- Positioning Angle Accuracy
- ± 1°
- Positioning Accuracy
- ± 10 mm (± 0.39")
Battery Performance
- Battery Type
- LiFePO4
- Rated Voltage
- 48 V
- Charging Cycle
- 1500 times (for fully charging and discharging)
- Run Time
- 6 h to 8 h
- Charging Time
- ≤ 1.5 h (for fully charging and discharging)
