The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras. The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs. The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
Model
- Product Model
- MV-CL042-91GC
- Type
- 4K GigE Line Scan Cameras，Color
Performance
- Sensor type
- CMOS
- Pixel size
- 7 μm × 7 μm
- Sensor size (computed)from resolution × pixel pitch
- 28.67 × 0.01 mm
- Sensor diagonal
- 28.67 mm
- Resolution
- 4096 × 2
- Max. line rate
- Standard mode: 28 kHz @ Bayer RG 8/Bayer RBGG 8/Mono 8, 14 kHz @ Bayer RG 10/12/Mono 10/12, 9 kHz @ RGB 8/BGR 8 High-bandwidth mode: 80 kHz @ Bayer RBGG 8, 40 kHz @ Bayer RG 8/RGB 8
- Dynamic range
- 65.6 dB
- SNR
- 40 dB
- Gain
- 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
- Exposure time
- 5 μs to 10 ms
- Exposure mode
- Off/Once/Continuous exposure mode, and supports trigger-width exposure
- Mono/color
- Color
- Pixel format
- Mono 8/10/12 Bayer RG 8/10/12 RGB 8, BGR 8 Bayer RBGG 8
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
- Trigger mode
- External trigger, internal trigger
- External trigger mode
- Line trigger, frame trigger, line + frame trigger
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
- Digital I/O
- 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
- Power supply
- 12 VDC to 24 VDC, supports PoE
- Power consumption
- Typ. 6.6 W @ 12 VDC
Mechanical
- Lens mount
- M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter
- Dimension
- 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6")
- Weight
- Approx. 280 g (0.6 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 5% RH to 90% RH (no condensation)
General
- Client software
- MVS or the third-party software meeting with GigE Vision protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Frame grabbers
Lenses that fit this camera
Filtered by the M42-mount thread and by coverage — the image circle is at least 28.67 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
18mm, F2.8, Image Size φ30mm, Recommended Magnification 0.012~0.105X, M42-Mount

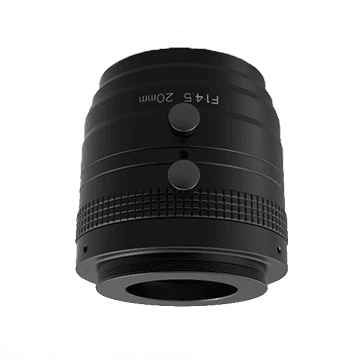

20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.134X, M42-Mount
25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount

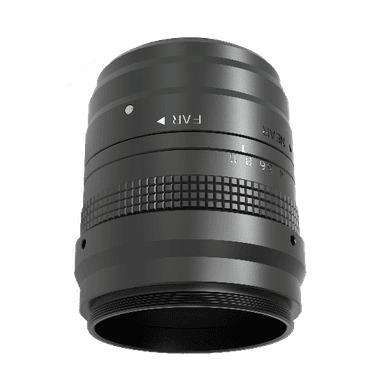

28mm, F4.0, Image Size φ30mm, Recommended Magnification 0.05~0.3X, M42-Mount
35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X, M42-Mount
35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X, M42-Mount

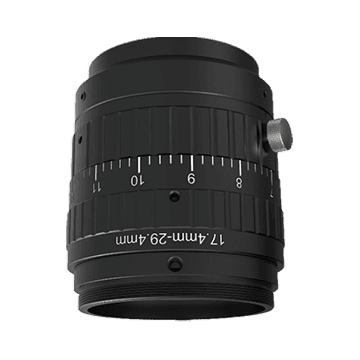

40mm, F2.8, Image Size φ37mm, Recommended Magnification 0.04~0.22X, M42-Mount

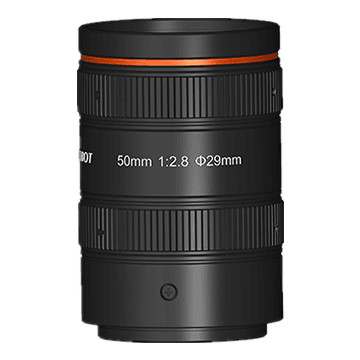

50mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.267X, M42-Mount
50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X, M42-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACG-RJ45s(up)-RJ45-HF-15m
MV-ACG-RJ45s(up)-RJ45-ST-15m
MV-ACG-RJ45s-RJ45-HF-10m
MV-ACG-RJ45s-RJ45-SF-10m
MV-ACG-RJ45s-RJ45-ST-10m
MV-ACG-RJ45s(up)-RJ45-HF-3m
MV-ACG-RJ45s(up)-RJ45-ST-3m
MV-ACG-RJ45s-RJ45-HF-15m
MV-ACG-RJ45s-RJ45-SF-15m
MV-ACG-RJ45s-RJ45-ST-15m
MV-ACG-RJ45s(up)-RJ45-HF-5m
MV-ACG-RJ45s(up)-RJ45-ST-5m
Power and I/O cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm

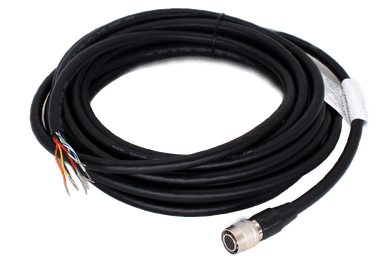

High-flex 12pin power & I/O cables，10 meters

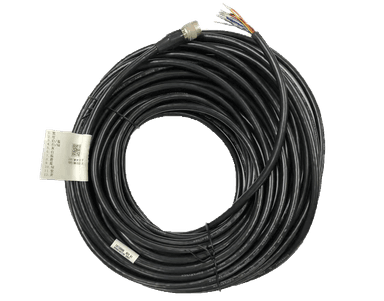

MV-ACP-H12p-open-ST-10m
