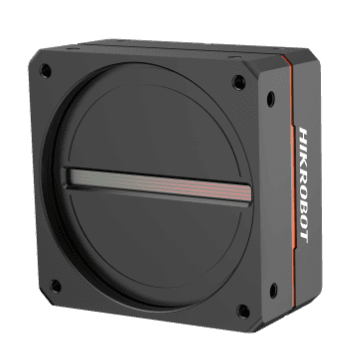

8k pixels Linescan Cameras.Camera Link,Mono

Name: 8k pixels Linescan Cameras.Camera Link,Mono
Brand: Hikrobot
SKU: MV-CL082-92CM(V2.0)

MV-CL082-92CM(V2.0)Hikrobot

Request a quote Datasheet PDF Manual CAD drawing

< 1 MP Camera Link Line Scan Cameras — CMOS, M72-mount, IP40

Model

Product Model: MV-CL082-92CM(V2.0)
Type: 8k pixels Linescan Cameras.Camera Link,Mono

Performance

Sensor type: CMOS
Pixel size: 7 μm
Sensor size (computed)from resolution × pixel pitch: 57.34 × 0.01 mm
Sensor diagonal: 57.34 mm
Resolution: 8192 × 2
Image mode: Supports 1-line, 2-TDI
Max. line rate: 20 kHz (Base), 40 kHz (Medium), 80 kHz (Full), 100 kHz (80-bit)
Configuration mode: Base, Medium, Full, 80-bit
Tap geometry: 1 × 2, 1 × 4, 1 × 8, 1 × 10
Tap number: 2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock: 40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range: 63.4 dB
Mono/color: Mono
SNR: 40.8 dB
Gain: Supports 1.0 ×
Exposure time: 3 μs to 10 ms
Exposure mode: Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output
Trigger mode: External trigger, internal trigger
External trigger mode: Line trigger, frame trigger, line + frame trigger

Electrical feature

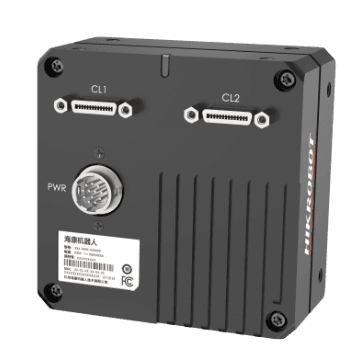

Data interface: Camera Link (SDR connector); USB interface for updating firmware
Digital I/O: 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 9.8 W @ 12 VDC

Mechanical

Lens mount: M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension: 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
Weight: Approx. 320 g (0.7 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 5% RH to 90% RH (no condensation)

General

Client software: MVS and frame grabber software meeting with Camera Link Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility: Camera Link V1.2, GenICam
Certification: CE, RoHS2.0, KC

Firmware

MV_CL082_92CM_STD_V4.0.1_220908_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

172 mm

Magnification: 0.57×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Data cables the manufacturer lists

MV-ACCL-SDR-SDR-HF-7M

Camera Link cable(SDR-SDR)，high flex，7m

MV-ACCL-SDR-SDR-ST-5M

Camera Link cable(SDR-SDR)，standard，5m

Frame grabbers

MV-GC1002-V2

CML FrameGrabber，with DB15 connector

Lenses that fit this camera

Filtered by the M72-mount thread and by coverage — the image circle is at least 57.34 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
