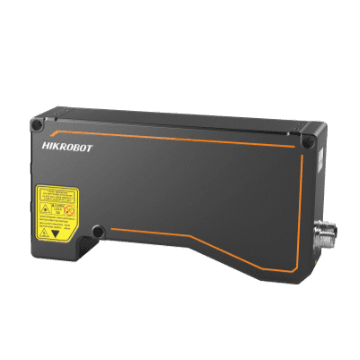

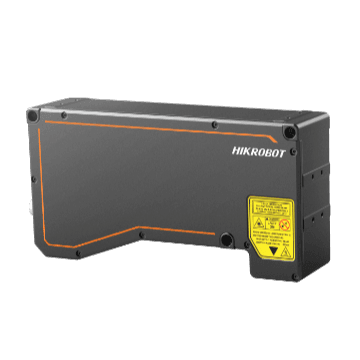

3D Laser Profile Sensor

Name: 3D Laser Profile Sensor
Brand: Hikrobot
SKU: MV-DP4430-03P

MV-DP4430-03PHikrobot

GigE 3D Cameras — IP67

Model

Data points/profile: 4080
Reference distance: 430 mm
Measurement range (Z-axis): 340 mm
Measurement range (X-axis): 153 mm @ near field of view 241 mm @ reference distance 329 mm @ far field of view
Resolution (Z-axis): 8.4 μm to 35.5 μm
Repeatability (Z-axis)*: 2.27 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 35.7 μm to 85.4 μm
Scan frame rate: 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode)
Data output: Profile data, depth image, brightness image
Trigger mode: Software trigger, external trigger (differential encoder)
Laser safety class: Class 3R
Wavelength: 650 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power consumption: Typ. 20 W @ 24 VDC
Power supply: 24 VDC

Dimension: 213.5 mm × 110.5 mm × 56 mm (8.4" × 4.4" × 2.2")
Weight: Approx. 1296 g (2.9 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS (V3.1.0 and above), VM3D, or third-party software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
