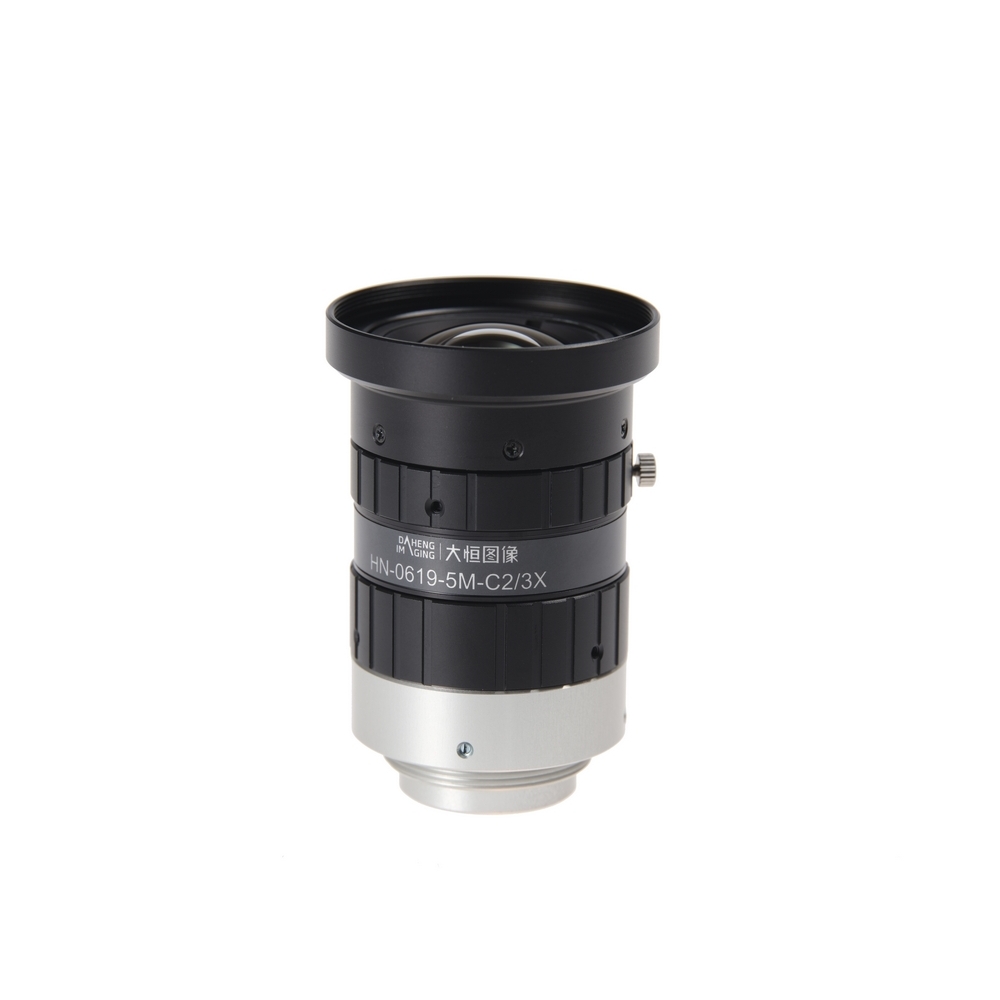

HN-0619-5M-C2/3X

DAHENG Anti-Shock/Vibration Machine-Vision Lens

6mm, 5Mpix, 2/3", C-Mount

DAHENG Anti-Shock/Vibration Machine-Vision Lens

  • High Resolution (5MP)
    The definition is consistent from the center to the periphery, which greatly improved aperture and work distance.
  • Compact
    With its diameter of φ39mm, the lens fits limited space requirements.
  • Easy installation
    The lens barrel is respectively provided with 3 holes that can fix the variable aperture and focus. The best fixing holes can be selected according to the setting environment. The installation is simple and convenient.
  • Generality
    The sensor size is 2/3″, which is widely suitable for industrial cameras on the market.
  • Anti-shock & Anti-vibration
    Excellent anti-shock and anti-vibration performance.
SKU: HN-0619-5M-C2/3X Categories: , Tags: , , ,
Compare

Model HN-0619-5M-C2/3X
Sensor Size(Standard) 2/3″ (3.45μm)
Sensor Size (Max.) 2/3″ (3.45μm)
Focal Length (mm) 6
F/No. F1.9-F16
Angle of View (H×V) 74.7°×58.1° (2/3″)
Working Distance (mm) ∞-100
Control: Focus Manual
Control: Iris Manual
Filter Thread (mm) M37.5×0.5
Mount C-mount
Weight(g) 100
Distortion (%) -2.88

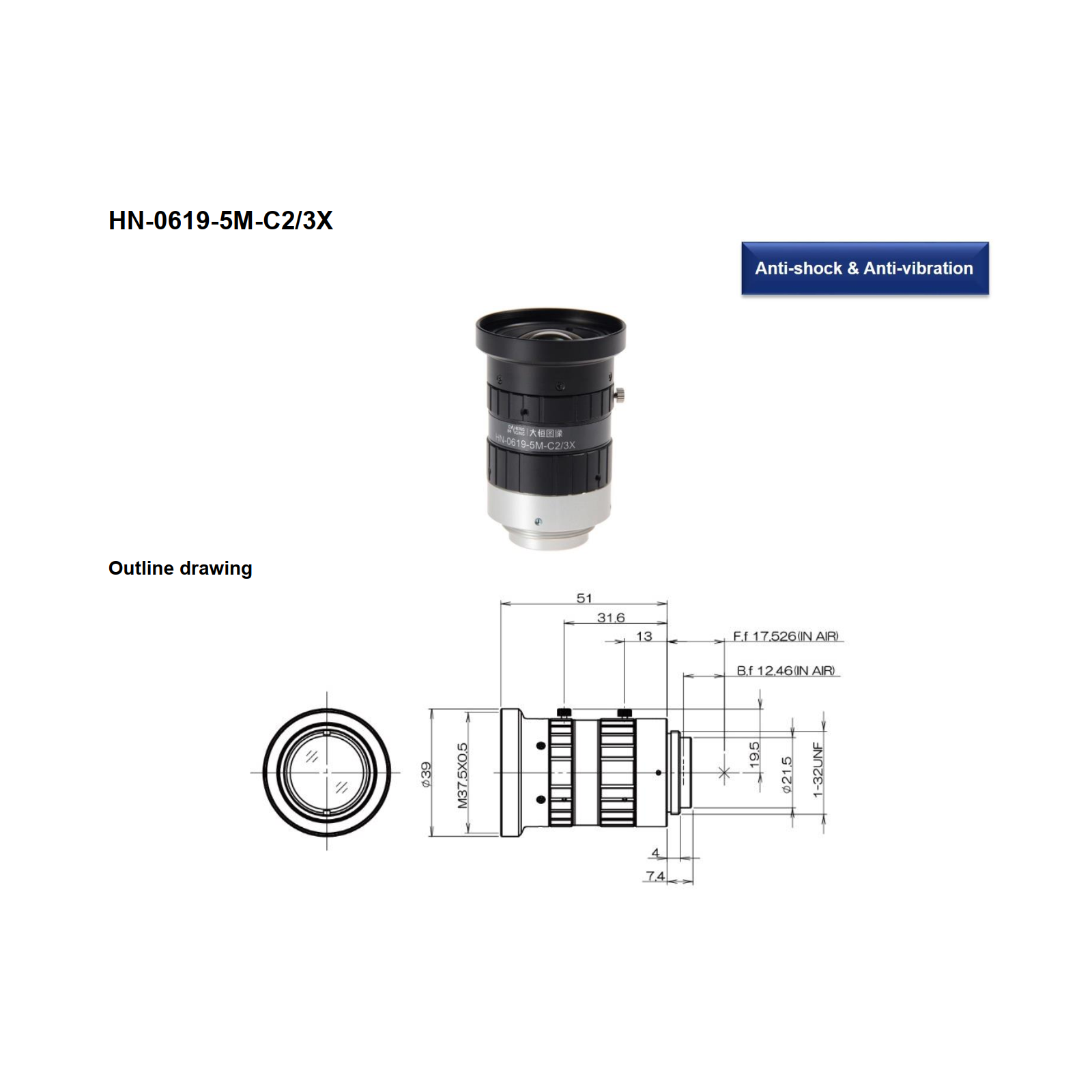

Dimensions(DXL)(mm) φ39.0×51
