- Power over Ethernet (IEEE802.3af compliant)
- Operating mode: single frame acquisition, continuous acquisition, software trigger acquisition and external trigger acquisition
- Trigger mode: Frame Start /Frame Burst Start
- Support LUTs and storable user sets
- Support Decimation, Binning, Reverse, Digital Shift and Black Level
- Support Color Enhancement for improving image quality (only for color models)
- Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
- Support Defect Pixel Correction and Flat Field Correction
- Support Timer and Counter
- Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
- Adjustable packet-size and packet-delay
- 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on.
- Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:

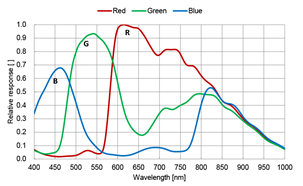

MARS-3140-3GC-P Spectral Response
MARS-3140-3GM-P Spectral Response
