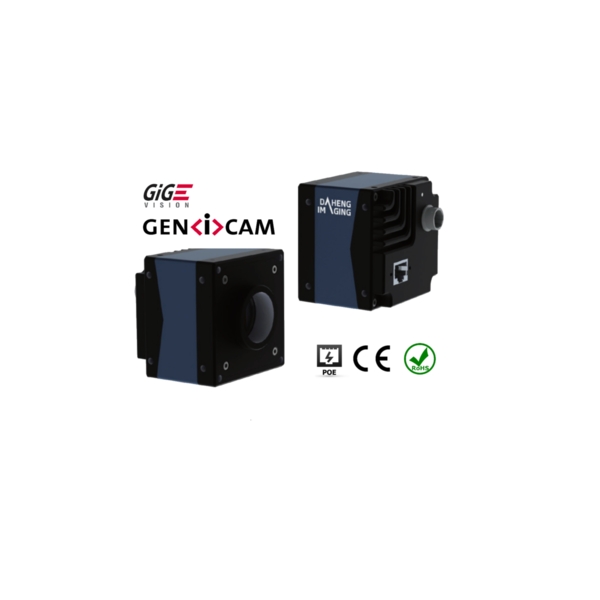

MARS-3140-3GC-P-M03

DAHENG Large sensor GigE PoE industrial digital camera

APS-C, 3fps, 6464x4852, Color, Global shutter, IMX342, GigE, PoE

DAHENG Large sensor GigE PoE industrial digital camera

The MARS GigE PoE series (MARS-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring high resolution, high definition and low noise. MARS-3140-3GM/C-P is a monochrome/color GigE Vision camera with the Sony IMX342 CMOS sensor. The Gigabit Ethernet interface is used for long distance transmission. The MARS series camera can be powered over Ethernet and has opto-isolated I/Os. Thanks to the locking screw connectors, the MARS series can secure the reliability of cameras deployed in harsh environments. The MARS cameras are industrial digital cameras with high reliability and high price/performance ratio. Thanks to its robust housings, outstanding performance, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: MARS-3140-3GC-P-M03 Categories: , Tags: , , , , , , ,
Compare
Add to quote
  • Power over Ethernet (IEEE802.3af compliant)
  • Operating mode: single frame acquisition, continuous acquisition, software trigger acquisition and external trigger acquisition
  • Trigger mode: Frame Start /Frame Burst Start
  • Support LUTs and storable user sets
  • Support Decimation, Binning, Reverse, Digital Shift and Black Level
  • Support Color Enhancement for improving image quality (only for color models)
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Support Defect Pixel Correction and Flat Field Correction
  • Support Timer and Counter
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • Adjustable packet-size and packet-delay
  • 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on.
  • Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:


MARS-3140-3GC-P Spectral Response


MARS-3140-3GM-P Spectral Response

Specifications MARS-3140-3GM-P MARS-3140-3GC-P
Resolution 6464(H) × 4852(V)
Frame Rate 3.4fps @ 6464 × 4852
Sensor Type APS-C（27.9mm）Sony IMX342 global shutter CMOS
Pixel Size 3.45 μm × 3.45 μm
Spectrum Mono Color
Pixel Data Formats Mono8/Mono12 Bayer RG8/Bayer RG12
Data Interface Fast Ethernet (100Mbit/s) or Gigabit Ethernet (1000Mbit/s)
Power Consumption <5.5W@12V DC, <6W@PoE
Lens Mount F-mount (-M02) /M42-mount (-M03) /No mount (-M06)(optional)
Dimensions (L × W × H) 52.1mm × 62mm × 62mm (without lens adapter or connectors)
Operating Temp. 0°C~45°C
Operating Humidity 10%~80%
Weight 292g
Regulations RoHS, CE, GigE Vision, GenICam, IEEE802.3af

Optical Specifications:

Lens Mount F mount M42 mount No mount
Camera Model MARS-3140-3GM/C-P-M02 MARS-3140-3GM/C-P-M03 MARS-3140-3GM/C-P-M06
