MER-301-125U3M-L

DAHENG Ultra-small USB 3.0 industrial digital camera

1/1.8", 125fps, 2048x1536, Mono, Global shutter, IMX252, USB3.0

DAHENG Ultra-small USB 3.0 industrial digital camera

The MERCURY USB3.0 series (MER-U3-L) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-301-125U3M/C-L camera is a monochrome/color USB3 Vision camera with the Sony IMX252 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-301-125U3M/C-L camera is powered over the USB interface. Compared to the MER-301-125U3M/C, the MER-301-125U3M/C-L has no I/O interfaces, so it is lighter and handier. The camera has an outstanding price/performance ratio. The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: MER-301-125U3M-L Categories: , Tags: , , , , , ,
Compare
Add to quote
  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • Support binning mode
  • Robust full metal housings and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, Android, ARMv7, ARMv8, etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, USB3 Vision
Spectral Response Data:

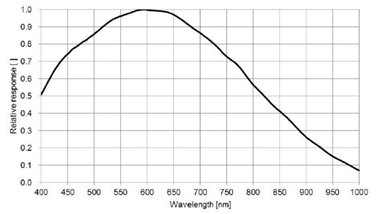

MER-301-125U3M-L Spectral Response

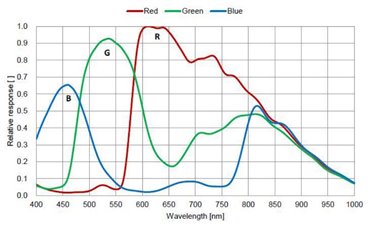

MER-301-125U3C-L Spectral Response

SpecificationsMER-301-125U3M-L MER-301-125U3C-L
Resolution2048(H)×1536(V)
Frame Rate125fps@2048×1536
Sensor Type1/1.8" Sony IMX252 global shutter CMOS
Pixel Size3.45μm ×3.45μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceUSB3.0
Power Consumption<2.7W @5V
Lens MountC Mount
Dimensions (L×W×H)29mm ×29mm ×29mm (without lens adapter or connectors)
Operating Temp.0°C~45°C
Operating Humidity10% ~80%
Weight53g
RegulationsRoHS, CE, FCC, USB3 Vision, GenICam
