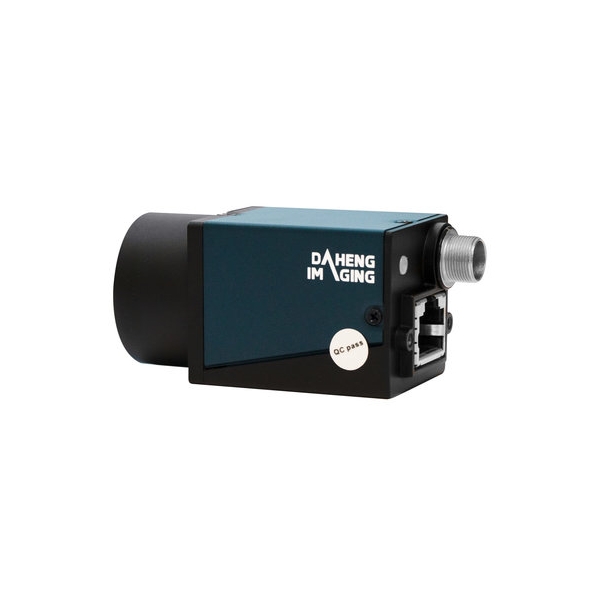

MER-531-20GM-P

DAHENG Ultra-small GigE-PoE industrial digital camera

1", 20fps, 2592x2048, Mono, Global shutter, PYTHON 5000 Low Speed, GigE, PoE

DAHENG Ultra-small GigE-PoE industrial digital camera

The MERCURY GigE PoE series (MER-G-P) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-531-20GM/C-P camera is a monochrome/color GigE Vision camera with the Onsemi PYTHON 5000 CMOS sensor. Thanks to the extremely compact (38.3mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-531-20GM/C-P camera is powered over Ethernet and has opto-isolated I/Os. The GPIOs give MER-G-P maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio. The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: MER-531-20GM-P Categories: , Tags: , , , , , , ,
Compare
Add to quote
  • Power over Ethernet (IEEE802.3af compliant)
  • 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models
  • Support defect pixel correction
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable packet-size and packet-delay, reserved bandwidth
  • Programmable LUTs
  • Storable user sets
  • Robust full metal housings and optional lockable devices
  • Cable lengths: up to 100 m (without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, ARMv7, ARMv8, etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:


MER-531-20GM/C-P Spectral Response

SpecificationsMER-531-20GM-PMER-531-20GC-P
Resolution2592(H) × 2048(V)
Frame Rate20 fps @2592 × 2048
Sensor Type1" Onsemi PYTHON 5000 global shutter CMOS
Pixel Size4.8 μm × 4.8 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceFast Ethernet(100Mbit/s) or Gigabit Ethernet(1000Mbit/s)
Power Consumption<3W@12V DC, <3.75W@PoE
Lens MountC Mount
Dimensions (L × W × H)38.3mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~45°C
Operating Humidity10% ~80%
Weight75g
RegulationsRoHS, CE, FCC, GigE Vision, GenICam, IEEE802.3af
