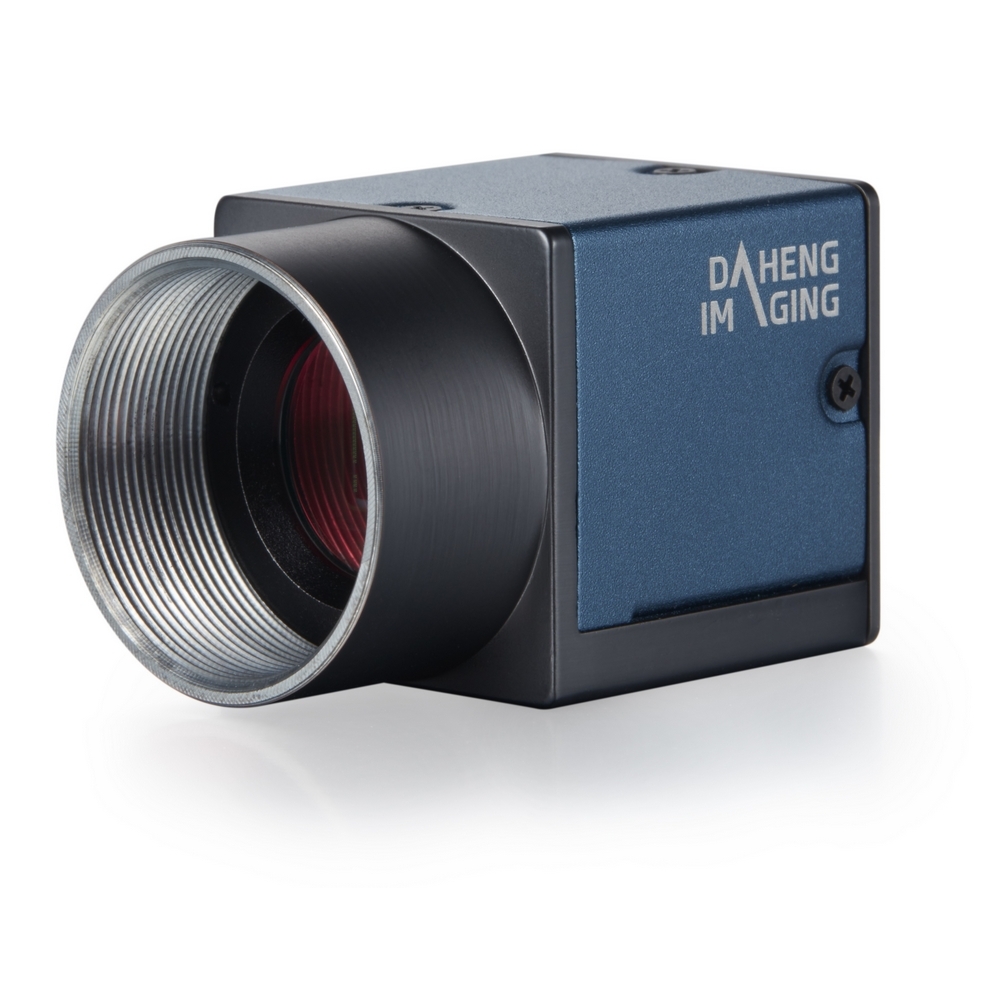

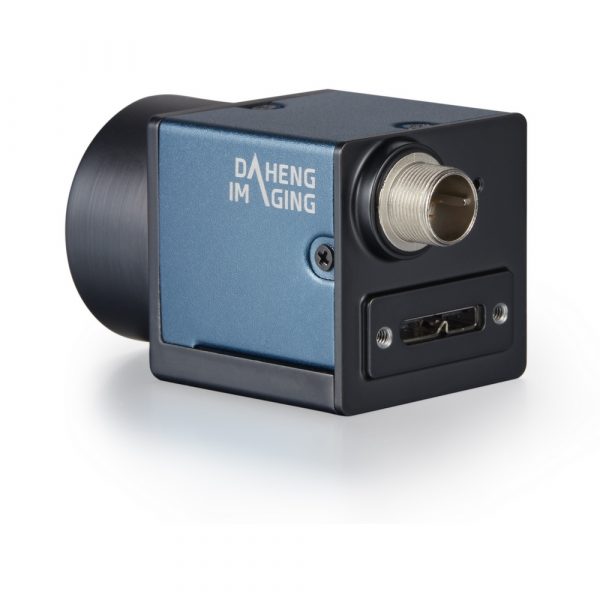

MER2-503-36U3M

DAHENG Ultra-small USB 3.0 industrial digital camera

2/3", 36fps, 2448x2048, Mono, Global shutter, IMX264, USB3.0

DAHENG Ultra-small USB 3.0 industrial digital camera

The MERCURY2 USB3.0 series (MER2-U3) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring outstanding performance, compact design and extremely low noise.

The MER2-503-36U3M/C camera is a monochrome/color USB3 Vision camera with the Sony IMX264 CMOS sensor. The MER2-503-36U3M/C camera has opto-isolated I/Os. The GPIOs give MER2-U3 maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: MER2-503-36U3M Categories: , Tags: , , , , , ,
Compare
Add to quote
  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Storable user sets
  • Support Digital Shift
  • Robust full metal housing and optional lockable devices
  • Compatible with GenICam™ and USB3 Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDK for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision
Spectral Response Data:

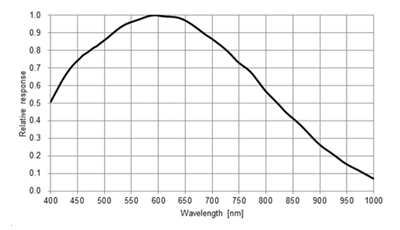

MER2-503-36U3M Spectral Response

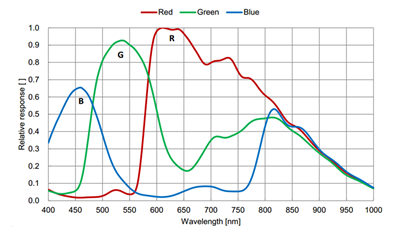

MER2-503-36U3C Spectral Response

SpecificationsMER2-503-36U3MMER2-503-36U3C
Resolution2448 (H) × 2048 (V)
Frame Rate36 fps
Sensor Type2/3", global shutter, Sony IMX264
Pixel Size3.45 μm × 3.45 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceUSB3.0
Power Consumption<2.7W @5V
Lens MountC Mount

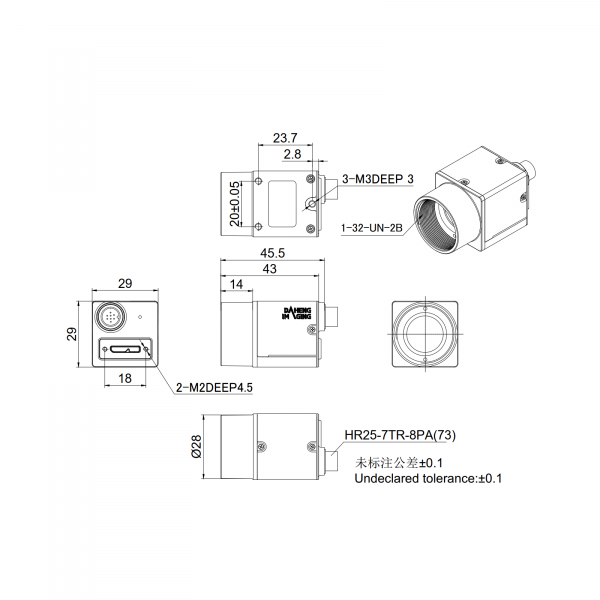

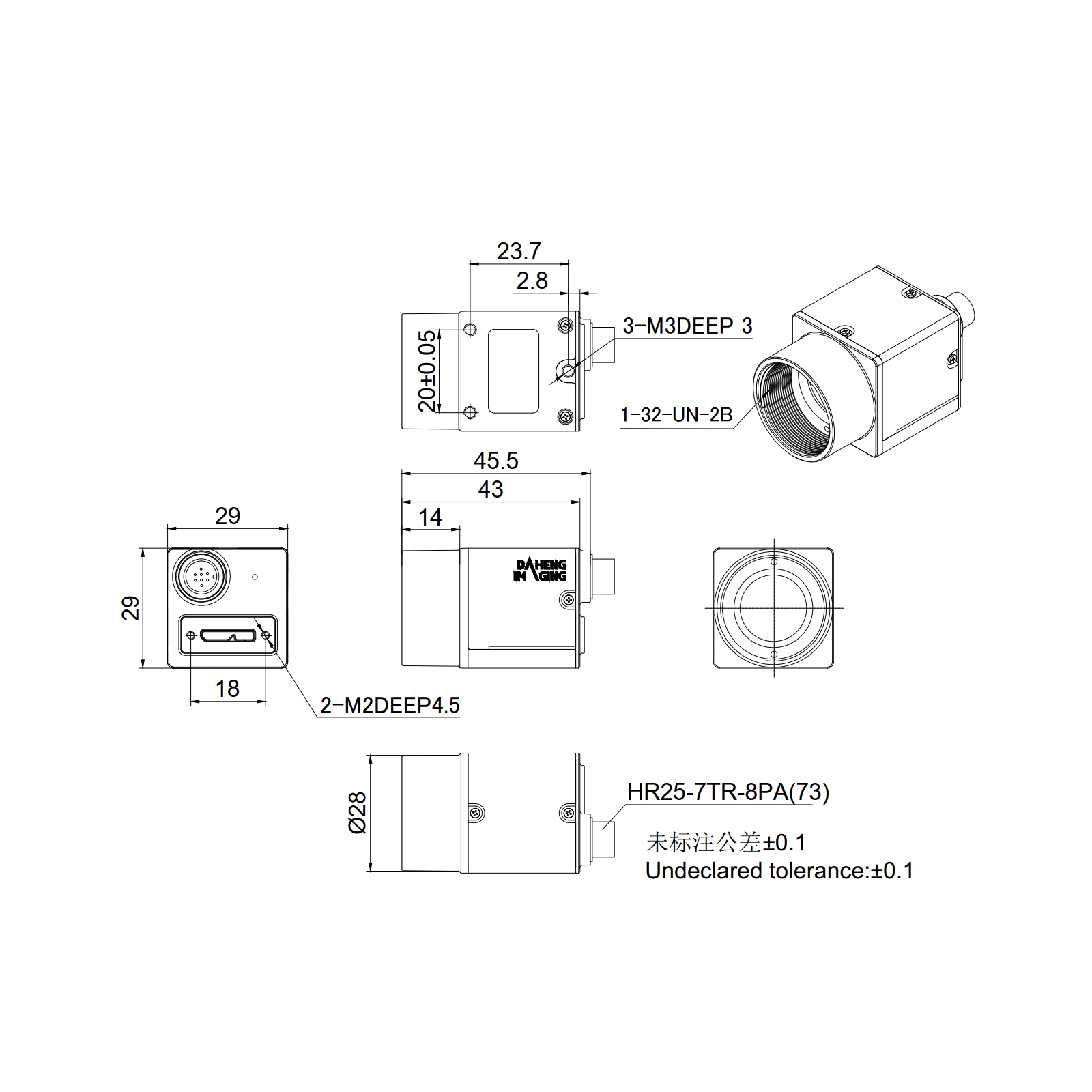

Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C ~ +45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~ 80%
Weight65g
RegulationsRoHS, CE, USB3 Vision, GenICam
