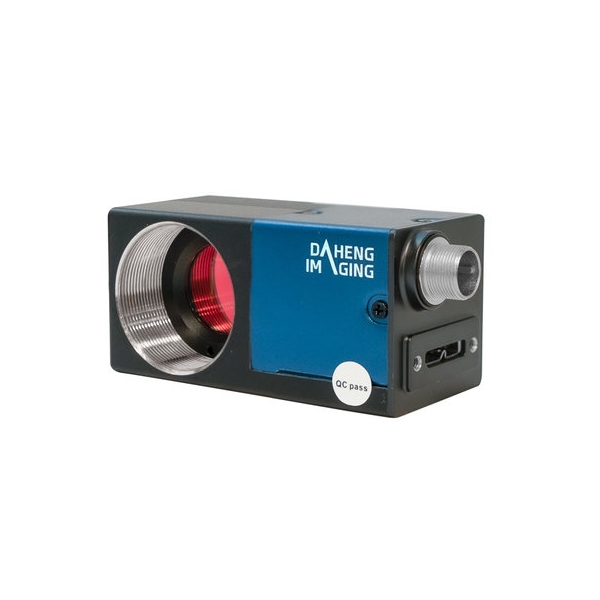

MER2-630-60U3C-W90

DAHENG USB 3.0 camera with 90° angle lens mount

1/1.8", 60fps, 3088x2064, Color, Rolling shutter, right angle (90°), IMX178, USB3.0

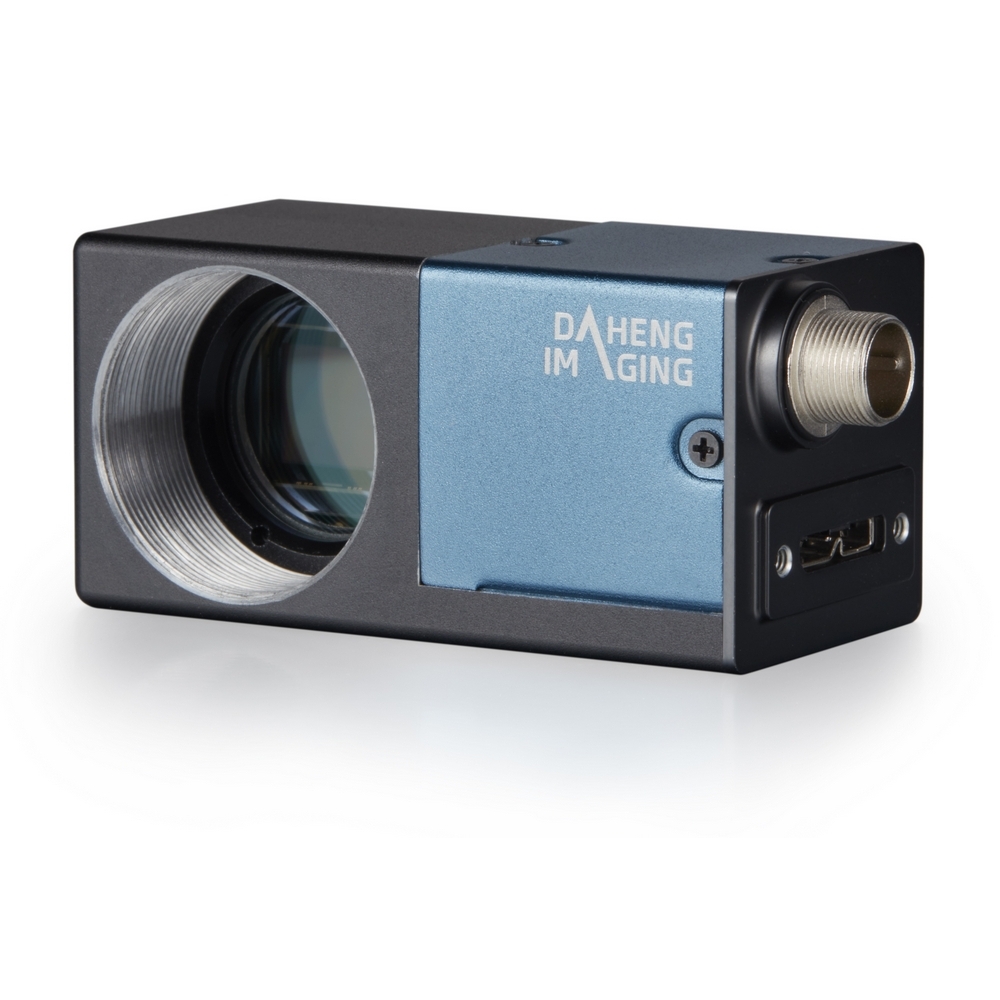

DAHENG USB 3.0 camera with 90° angle lens mount

The MERCURY2 USB3.0 series (MER2-U3) camera with 90 degree angle lens mount is DAHENG IMAGING’s new generation area scan industrial digital camera. Compared to MER-U3 and MER2-U3 with standard lens mount, MER2-U3 camera with 90 degree lens angle mount has more installation flexibility. The MER2-630-60U3M/C-W90 camera is a monochrome/color USB3 Vision camera with the Sony IMX178 CMOS sensor. Thanks to the compact design (29mm × 29mm × 58.8mm, including lens mount), robust metal housings and locking screw connectors, the MER2-630-60U3M/C-W90 camera can secure the reliability of cameras deployed in harsh environments. The MER2-U3 cameras have opto-isolated I/Os, and the GPIOs give MER2-U3 camera maximum flexibility to adapt to specific needs. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: MER2-630-60U3C-W90 Categories: , , Tags: , , , , , , ,
Compare
Add to quote
  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • 90 degree angle lens mount enables the camera to be angle installed in harsh environment
  • Robust full metal housing and optional lockable devices
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision
Spectral Response Data:


MER2-630-60U3M-W90 Spectral Response


MER2-630-60U3C-W90 Spectral Response

SpecificationsMER2-630-63U3M-W90MER2-630-63U3C-W90
Resolution3088 (H) × 2064 (V)
Frame Rate60 fps
Sensor Type1/1.8", rolling shutter, Sony IMX178
Pixel Size2.4 μm × 2.4 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceUSB3.0
Power Consumption<2.7W @5V
Lens MountC Mount

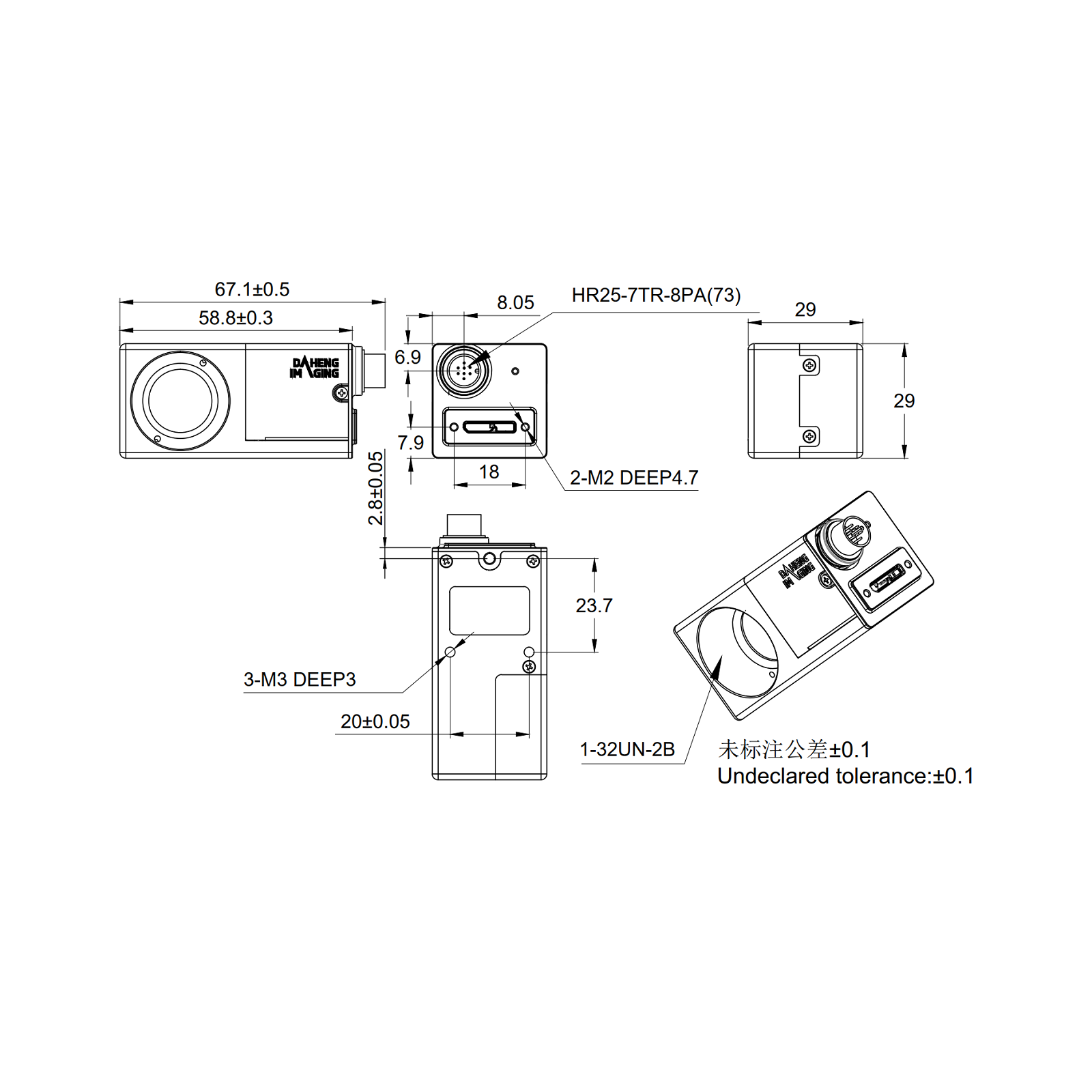

Dimensions (L × W × H)29mm × 29mm × 58.8mm(with lens mount, without I/O connector)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight78g
RegulationsCE, RoHS, USB3 Vision, GenICam
