- Standard QSFP28 fiber optic patch cord, center wavelength 850/1300 nm, multimode BI OM3, suitable for MPO fiber optic interface data transmission in static scenarios.
MV-AC100G-MPO-MPO-ST-10m

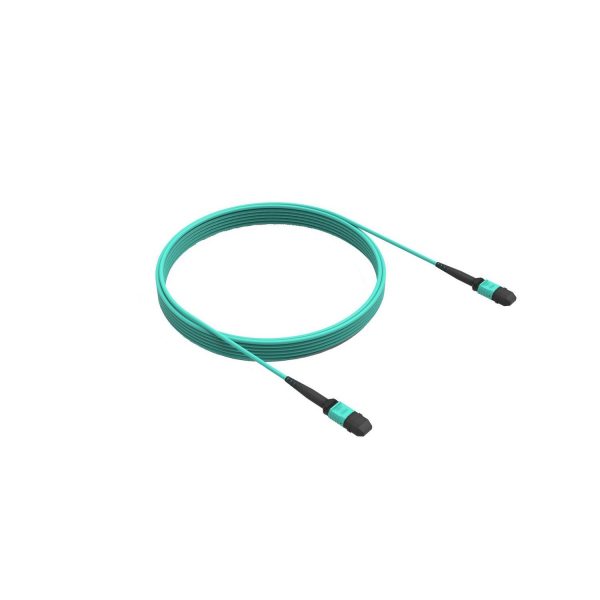

HIKROBOT Data Cable, standard QSFP28 Fiber Optic Patch, MPO interface, static, 10m
HIKROBOT Data Cable, standard QSFP28 Fiber Optic Patch, MPO interface, static, 10m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Model | MV-AC100G-MPO-MPO-ST-10m |
| Name | Standard QSFP28 fiber patch cord, MPO interface, static, length 10 meters | |
| Physical specifications | A-end interface | MPO12 Female |
| B-end interface | MPO12 Female | |
| Bundle diameter | 3 mm | |
| Length | 10 m | |
| Wire color | Aqua | |
| Connector durability | 1000 plugging and unplugging cycles | |
| Minimum bending radius | 30 mm | |
| Applicable scenarios | Static | |
| Fiber type | BI OM3 multimode fiber | |
| Central wavelength | 850/1300 nm | |
| Insertion loss | ≤0.35 dB@850/1300 nm | |
| Return loss | ≥25 dB@850/1300 nm | |
| Other information | Operating temperature | -20°C~60°C |
| Certification | RoHS | |
| Packaging | Individual packaging bag |
