MV-AC10G-RJ45s-RJ45-ST-3m

HIKROBOT Data Cable, RJ45 to RJ45, CAT6, 3m

RJ45, Cat. 6, 3m

HIKROBOT Data Cable, RJ45 to RJ45, CAT6, 3m

Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.

Product Downloads:

Data Sheet

SKU: MV-AC10G-RJ45s-RJ45-ST-3m Categories: , Tags: , ,
Compare
  • The RJ45 Standard 10 Gigabit Ethernet Cable can be used for data transmission of RJ45 10 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

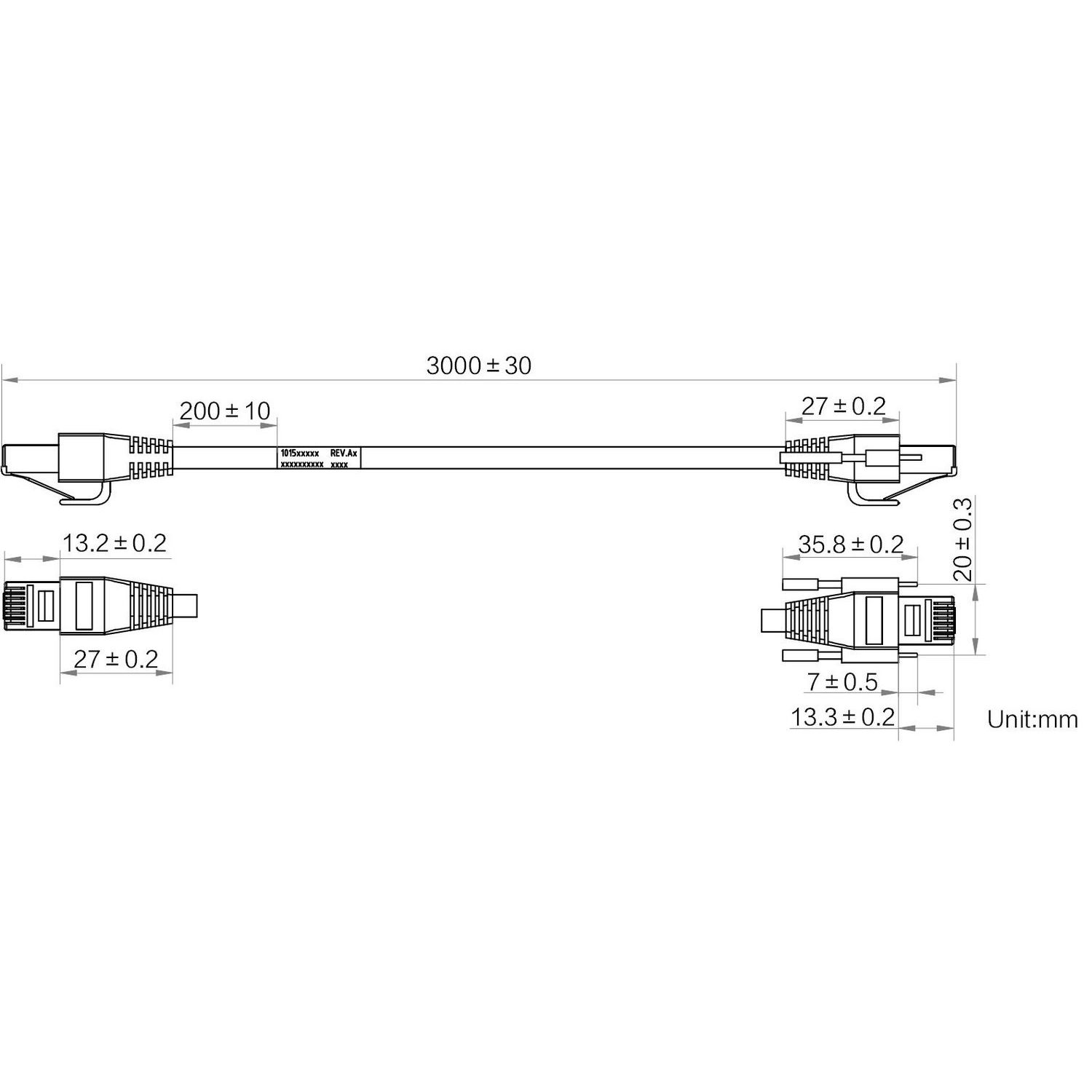

ModelProduct ModelMV-AC10G-RJ45s-RJ45-ST-3m
TypeMV-AC10G-RJ45s-RJ45-ST-3m
Physical specificationEnd A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter7.0 mm
Length3 m
Cable mechanical(26#*1P+AL)*4C+AB
JacketPVC
Cable colorBlack
Connector durability>750 cycles
Min. bending radius84 mm
Applicable scenarioStatic scenes
Electrical specificationMax. voltage30 VDC
Additional informationWorking temperature-20℃~ 75℃
CertificationRoHS,UL
PackagingIndividual package
