- Camera Link fiber optic data cable can be used for data transmission between Camera Link interface cameras, and various lengths are available.
MV-ACCL-SDR-MDR-AOC-15m-Base

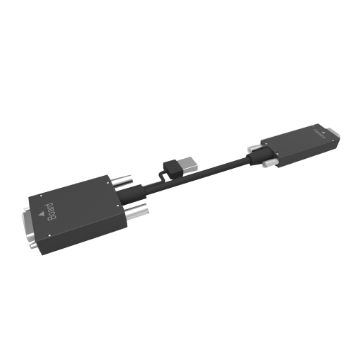

HIKROBOT Data Cable, Camera Link, AOC Fiber, SDR to MDR, Moveable, 15m, Base cable
HIKROBOT Data Cable, Camera Link, AOC Fiber, SDR to MDR, Moveable, 15m, Base cable
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Model | MV-ACCL-SDR-MDR-AOC-15m-Base |
| Name | Cameralink AOC Fiber Optic Data Cable | |

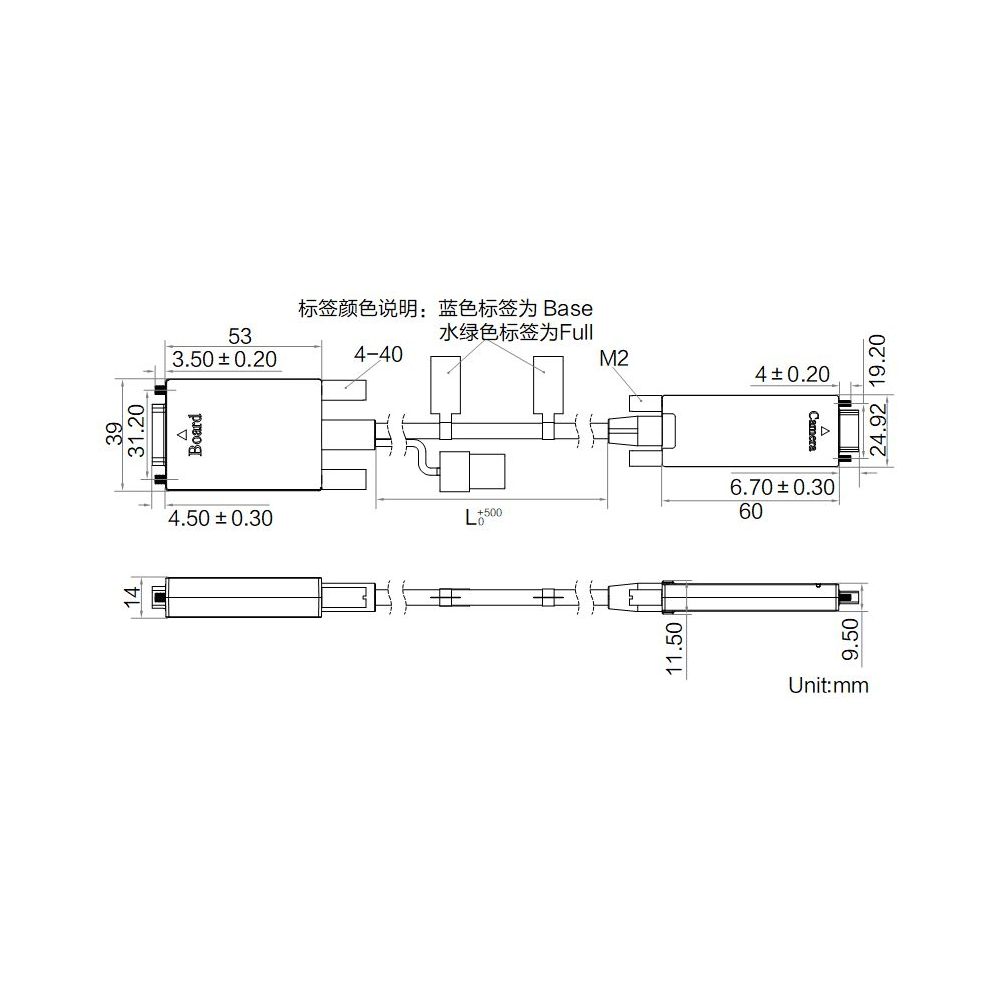

| Physical Specifications | A-End Interface | SDR26 |
| B-End Interface | MDR26 (Board-End, with Type A USB3.0 Power Connector) | |
| Wire Harness Diameter | 5.6 ± 0.2 100 mm When used: 67.2 mm | |
| Allowable tensile force | When installed: 300 N When used: 150 N | |
| Allowable crushing force | Long term: 200 N/100 mm Short term 350 N/100 mm | |
| Applicable scenarios | Drag chain | |
| Drag chain (U-shaped) sliding cycle number | 5 million times | |
| Electrical specifications | Power supply | 5 V-400 mA |
| Other information | Operating temperature | 0°C ~ 70°C |
| Packaging | Individual packaging bag + paper box |
