- The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
MV-ACCL-SDR-MDR-HF-5m

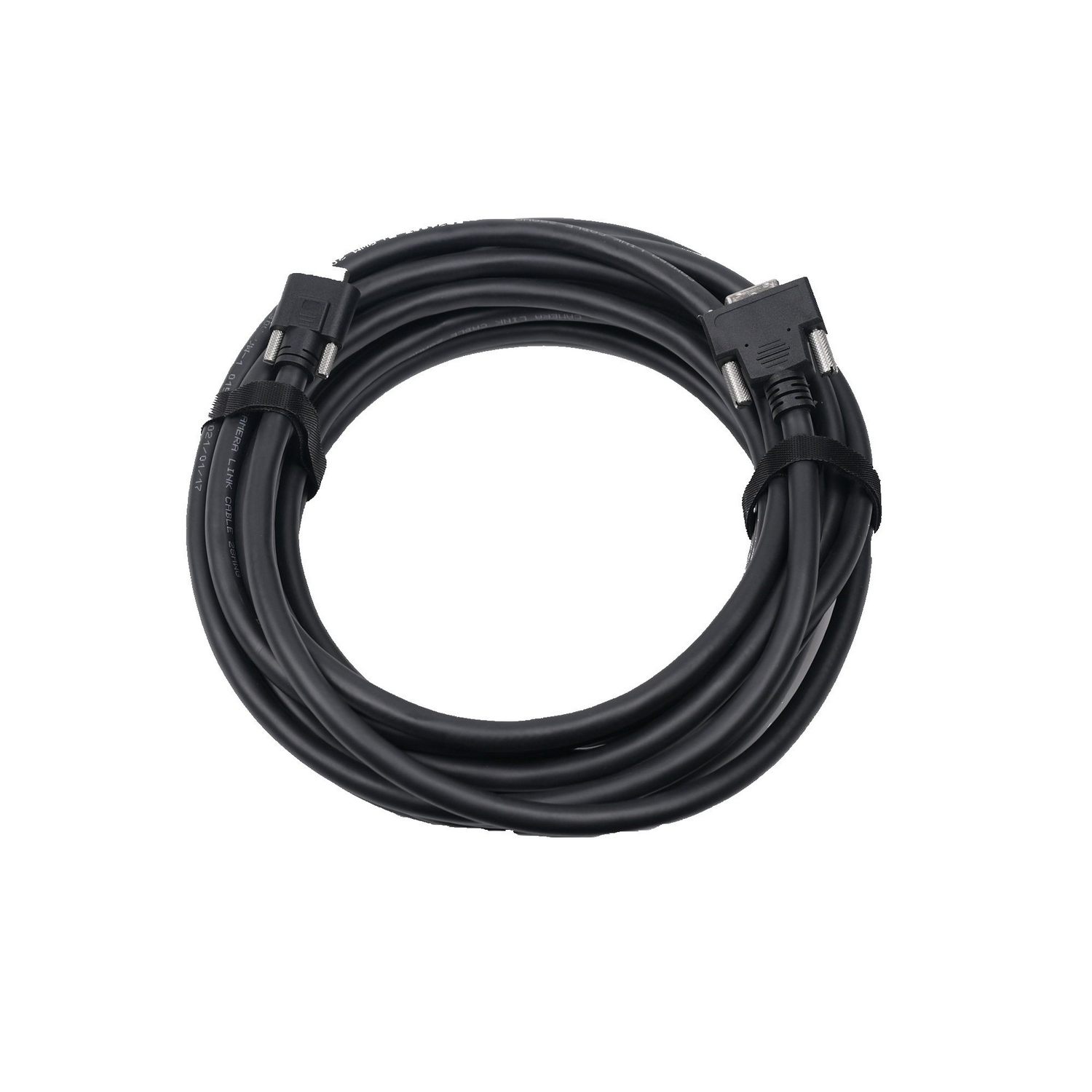

HIKROBOT Data Cable, Flexible Camera Link, S2M, Straight, 5m, moveable
HIKROBOT Data Cable, Flexible Camera Link, S2M, Straight, 5m, moveable
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACCL-SDR-MDR-HF-5m |
| Type | Camera Link cable(SDR-MDR)，high flex，5m | |

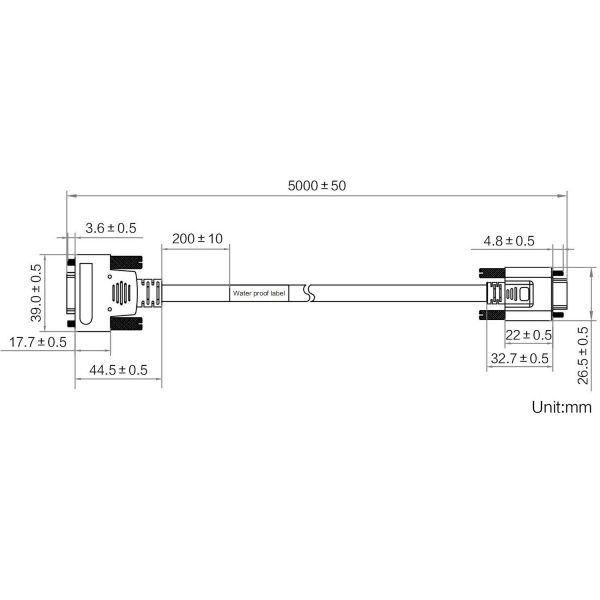

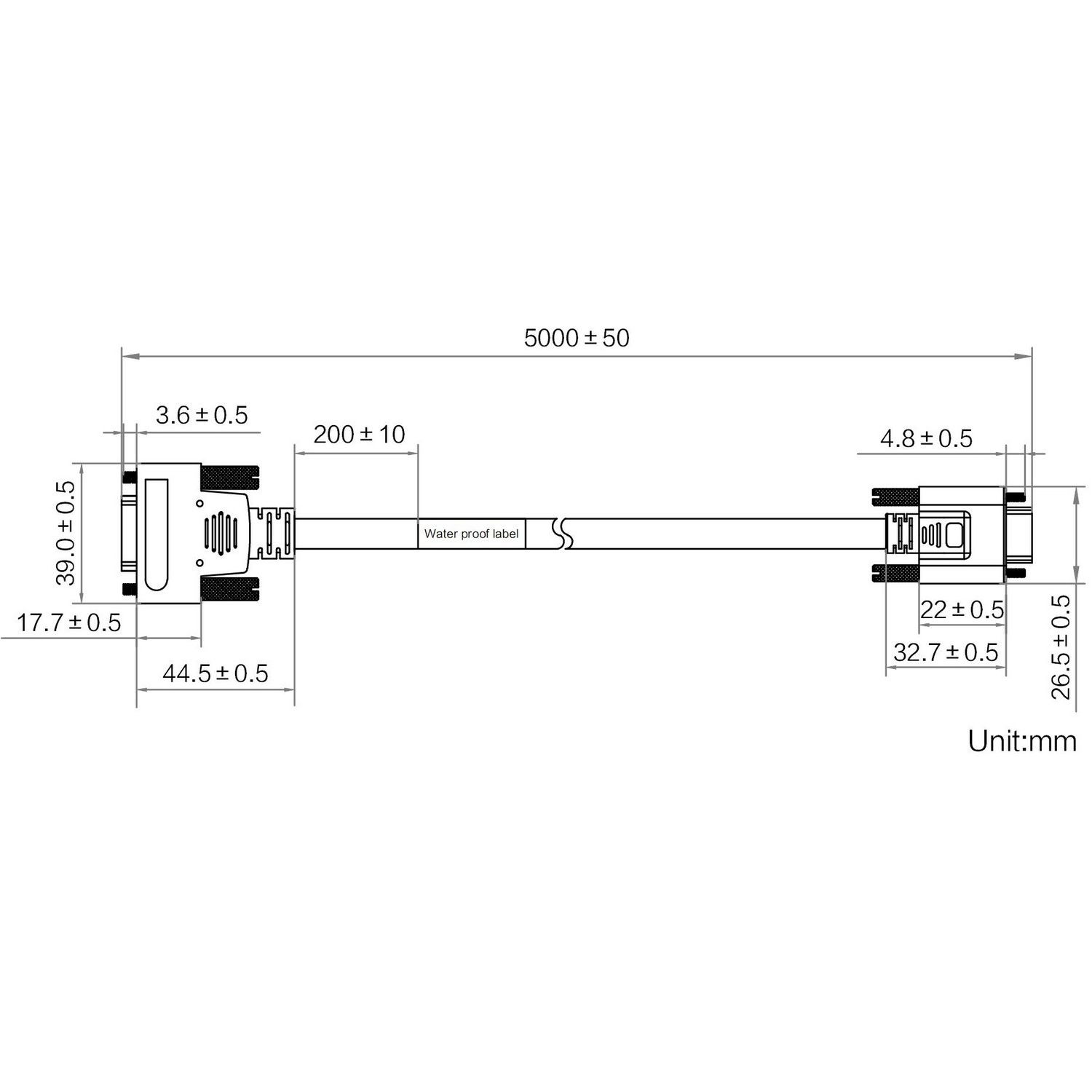

| Physical specification | End A connector | SDR26 |
| End B connector | MDR26 | |
| Cable diameter | 9.5 mm | |
| Length | 5 m | |
| Cable mechanical | UL20276 | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector model | made in China | |
| Connector durability | 500 cycles | |
| Min. bending radius | 114 mm | |
| Applicable scenario | Drag chain | |
| Max. U-type bending cycles | 5 million times | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20°C~80°C |
| Certification | UL | |
| Packaging | Individual package |
