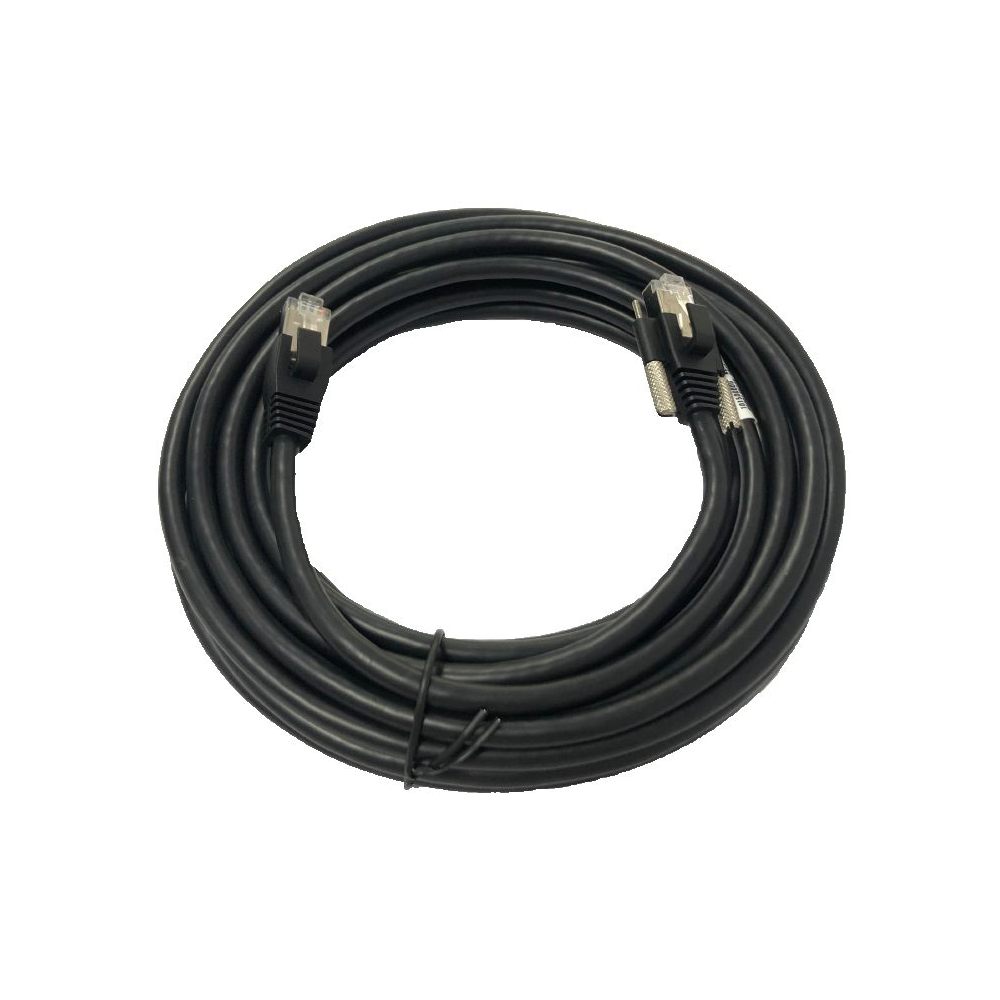

MV-ACG-RJ45s-RJ45-SF-10m

HIKROBOT Data Cable, GigE, CAT.5E, SFTP, 2 x RJ45, 10m, Black, Super Flexible, static/moveable/mechanical arm

GigE, Cat. 5E, SFTP, RJ45, Super Flexible, Arm, Moveable, Black, 10m

HIKROBOT Data Cable, GigE, CAT.5E, SFTP, 2 x RJ45, 10m, Black, Super Flexible, static/moveable/mechanical arm

Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.

Product Downloads:

Data Sheet

SKU: MV-ACG-RJ45s-RJ45-SF-10m Categories: , Tags: , , , , , , , ,
Compare
  • The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

ModelProduct ModelMV-ACG-RJ45s-RJ45-SF-10m
TypeMV-ACG-RJ45s-RJ45-SF-10m

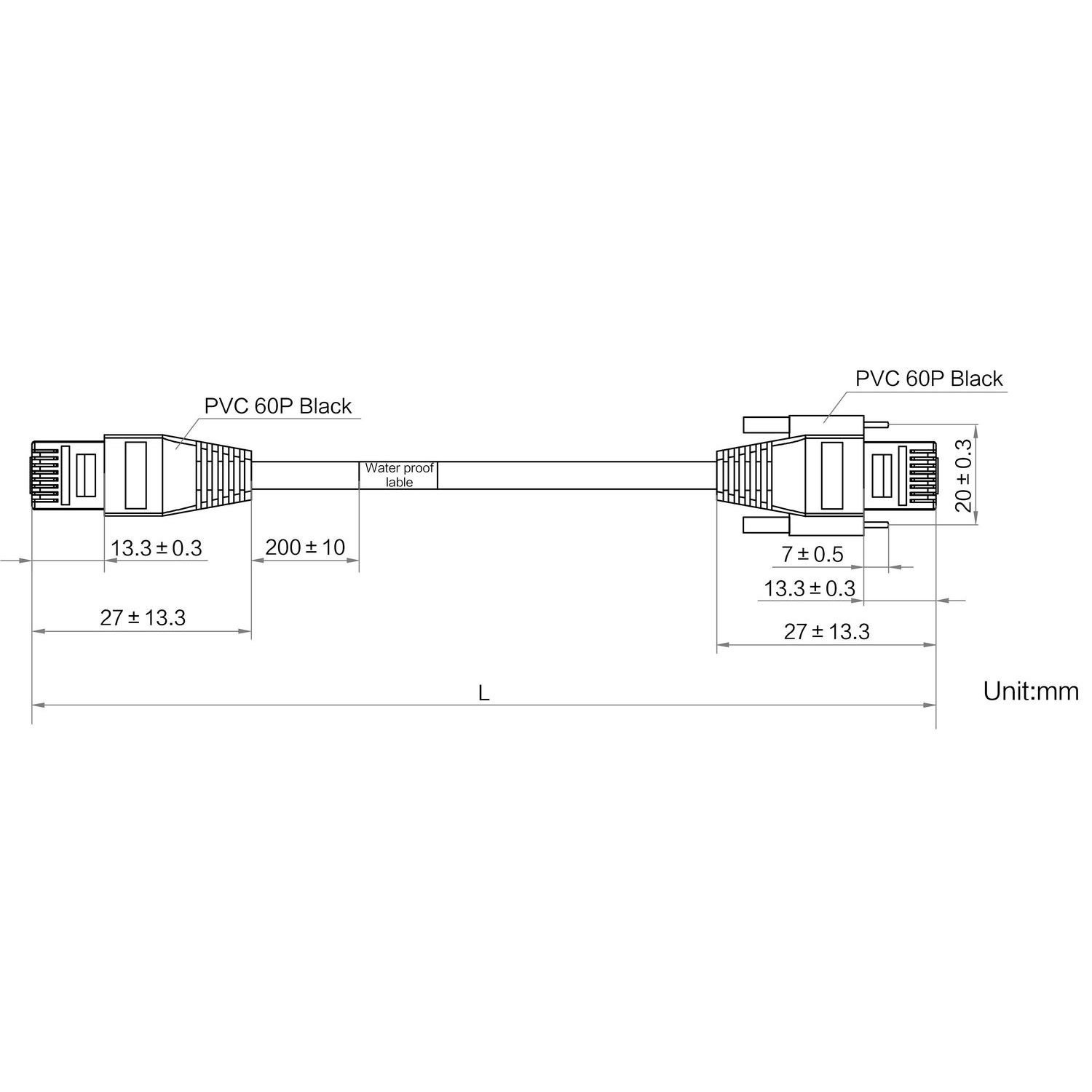

Physical specificationEnd A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter6.5 mm
Length10 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥750 cycles
Min. bending radius78 mm
Applicable scenarioTank chain,Robot arm
Max. U-type bending cycles10 million times
Max. ±90° bending cycles5 million times
Max. ±180° torsional cycles3 million times
Electrical specificationMax. voltage30 VDC
Additional informationWorking temperature-20°C~ 75°C
CertificationRoHS2.0,UL
PackagingIndividual package
