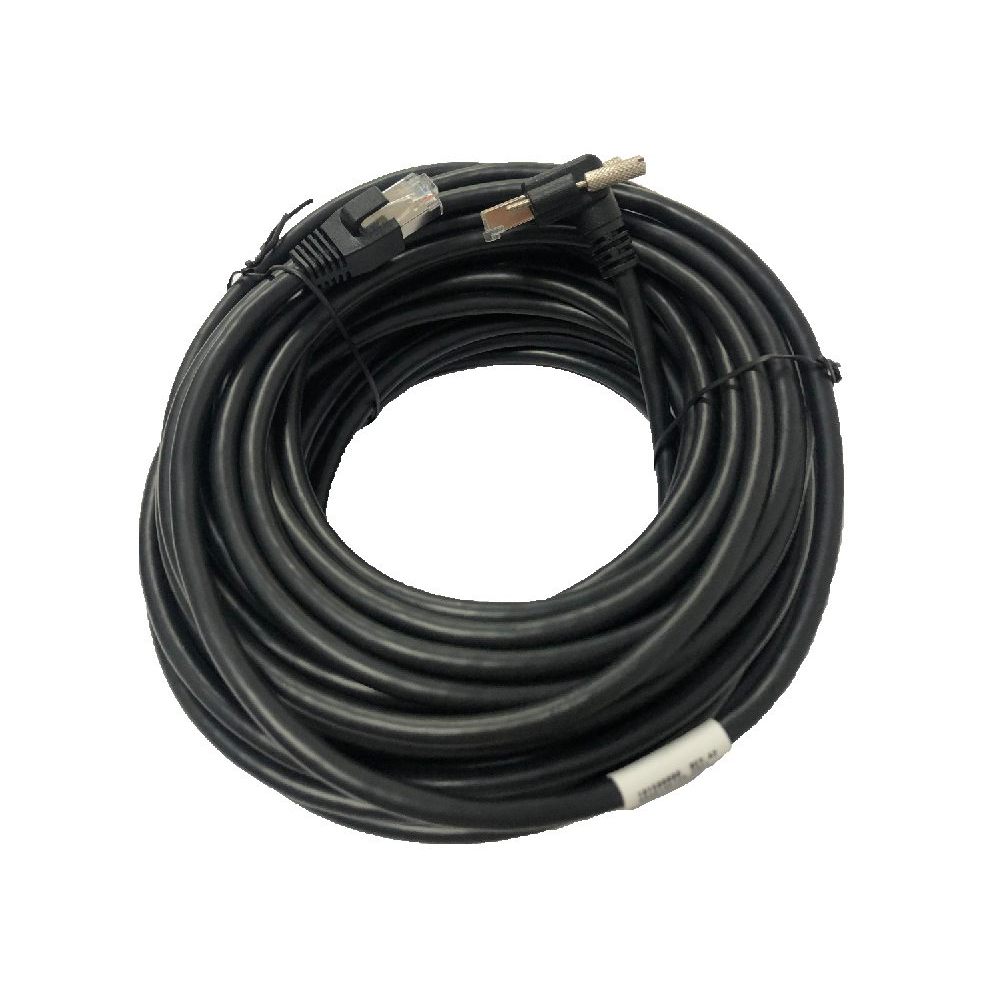

- The RJ45 Standard (Bend) Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
MV-ACG-RJ45s(up)-RJ45-ST-15m
HIKROBOT Data Cable, GigE, CAT.5E, SFTP, 2 x RJ45, 15m, Black, Right Angle (Down)
HIKROBOT Data Cable, GigE, CAT.5E, SFTP, 2 x RJ45, 15m, Black, Right Angle (Down)
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACG-RJ45s(up)-RJ45-ST-15m |
| Type | MV-ACG-RJ45s(up)-RJ45-ST-15m | |
| Physical specification | End A connector | RJ45 (with locking stud)，Bend(up） |
| End B connector | RJ45 | |
| Cable diameter | 6.2 mm | |
| Length | 15 m | |
| Cable mechanical | 4P*26#+AB | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector durability | ≥750 cycles | |
| Min. bending radius | 74.4 mm | |
| Applicable scenario | Static scenes | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0，UL | |
| Packaging | Individual package |
