- The 12-pin P10 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
MV-ACP-H12p-open-ST-5m
HIKROBOT Power/IO Cable, Hirose 12pin, HR10A-10P-12S to Open, 5m
HIKROBOT Power/IO Cable, Hirose 12pin, HR10A-10P-12S to Open, 5m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACP-H12p-open-ST-5m |
| Type | MV-ACP-H12p-open-ST-5m | |

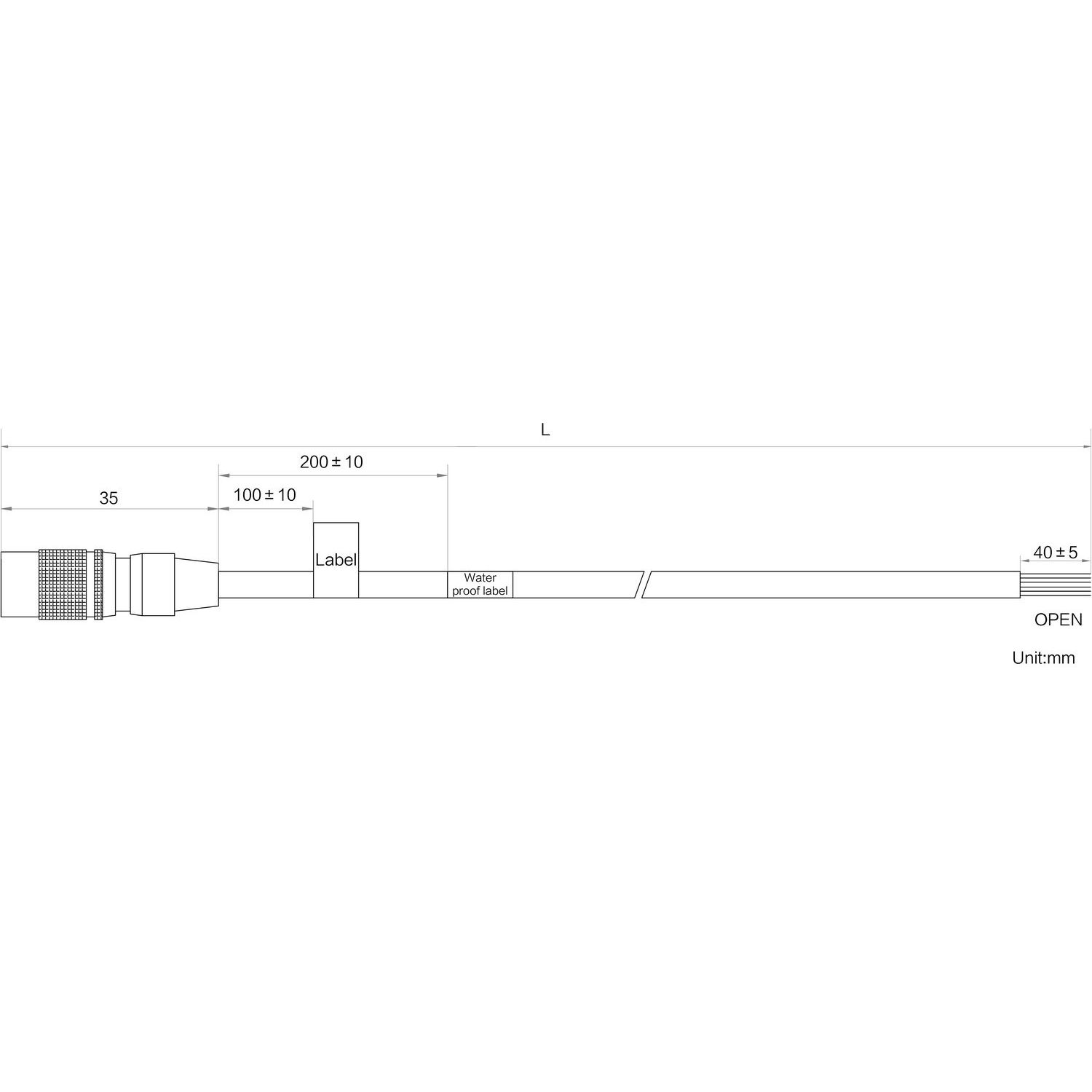

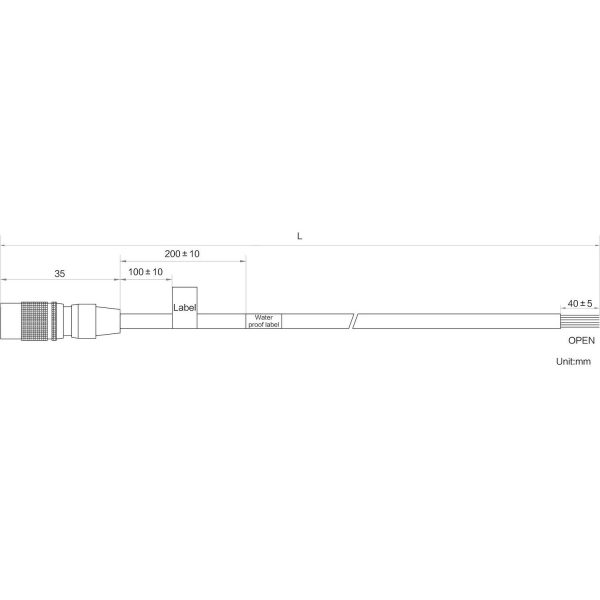

| Physical specification | End A connector | P10 12-pin，Female |
| End B connector | Open | |
| Cable diameter | 7.0 mm | |
| Length | 5 m | |
| Cable mechanical | 5P*26AWG+1P*24AWG+B | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector model | made in China | |
| Connector durability | ≥ 750 cycles | |
| Min. bending radius | 84 mm | |
| Applicable scenario | Static scene | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20°C~75°C |
| Certification | RoHS2.0，UL | |
| Packaging | Individual package |
