- The 6-pin P7 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
MV-ACP-H6p-open-ST-60m
HIKROBOT Power/IO Cable, Hirose 6pin, HR10A-7P-6S to Open, 60m
HIKROBOT Power/IO Cable, Hirose 6pin, HR10A-7P-6S to Open, 60m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACP-H6p-open-ST-60m |
| Type | MV-ACP-H6p-open-ST-60m | |
| Physical specification | End A connector | P7 6-pin，Femal |
| End B connector | Open | |
| Cable diameter | 5.0 mm | |

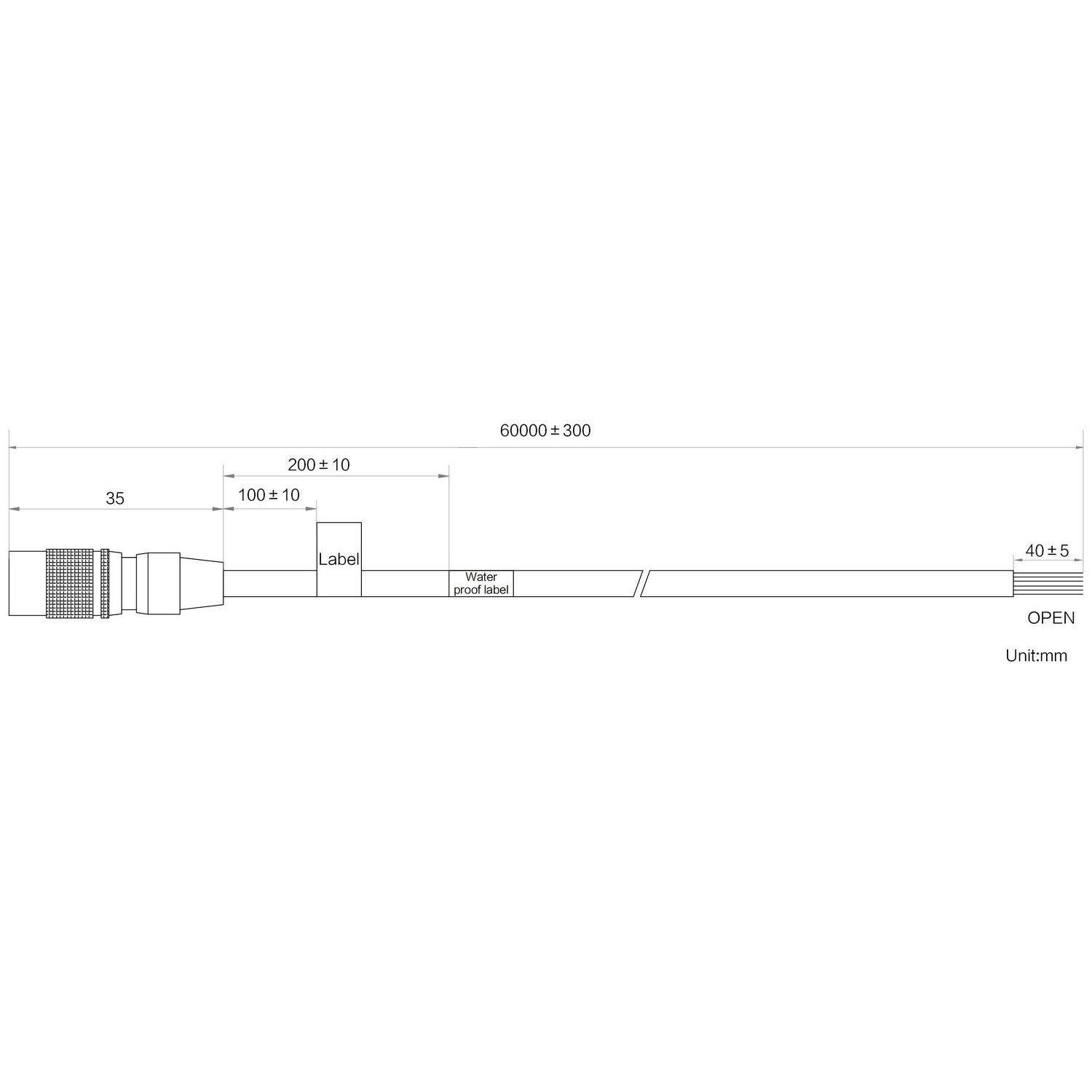

| Length | 60 m | |
| Cable mechanical | 26#×2P+26#×2C+AB | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector model | made in China | |
| Connector durability | ≥ 750 cycles | |
| Min. bending radius | 60 mm | |
| Applicable scenario | Static scene | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20°C~75°C |
| Certification | RoHS2.0，UL | |
| Packaging | Individual package |
